QADA-65 Series

Manufacturer: Qualtek

Catalog

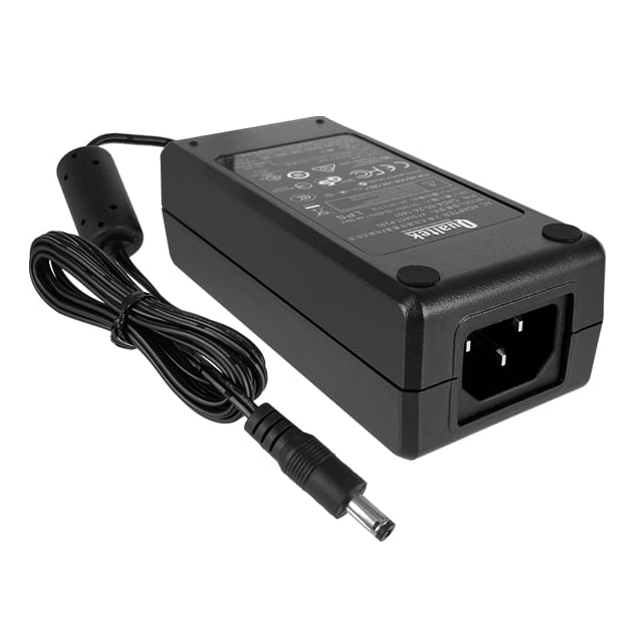

AC/DC DESKTOP ADAPTER 48V 65W

Part	No Load Power Consumption	Output Connector [x]	Output Connector [diameter]	Output Connector	Power (Watts)	Voltage - Input [Min]	Voltage - Input [Max]	Form	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Region Utilized	Operating Temperature [Max]	Efficiency	Current - Output (Max) [Max]	Voltage - Output	Cord Length	Cord Length	Input Connector	Polarization	Input Type	Applications	Current - Output (Max)
Qualtek QADA-65-48-1401	210 mW	11 mm	2.1 mm 5.5 mm	Barrel Plug	65 W	100 VAC	240 VAC	Desktop (Class I)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	International	40 °C	Level VI	1.36 A	48 V	1.5 m	59 in	IEC 320-C14	Positive Center	Cord (Sold Separately)
Qualtek QADA-65-19-0801	210 mW	11 mm	2.1 mm 5.5 mm	Barrel Plug	65 W	100 VAC	240 VAC	Desktop (Class II)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	International	40 °C	Level VI	3.43 A	19 V	1.5 m	59 in	IEC 320-C8	Positive Center	Cord (Sold Separately)
Qualtek QADA-65-48-0801	210 mW	11 mm	2.1 mm 5.5 mm	Barrel Plug	65 W	100 VAC	240 VAC	Desktop (Class II)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	International	40 °C	Level VI	1.36 A	48 V	1.5 m	59 in	IEC 320-C8	Positive Center	Cord (Sold Separately)
Qualtek QADA-65-15-1401	210 mW	11 mm	2.1 mm 5.5 mm	Barrel Plug	65 W	100 VAC	240 VAC	Desktop (Class I)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	International	40 °C	Level VI	4.34 A	15 V	1.5 m	59 in	IEC 320-C14	Positive Center	Cord (Sold Separately)
Qualtek QADA-65-12-1401	210 mW	11 mm	2.1 mm 5.5 mm	Barrel Plug	60 W	100 VAC	240 VAC	Desktop (Class I)	115 mm	2.09 "	1.5 in	53 mm	38 mm	4.53 "	International	40 °C	Level VI		12 V	1.5 m	59 in	IEC 320-C14	Positive Center	Cord (Sold Separately)	ITE (Commercial)	5 A
