052437 Series

Manufacturer: Molex

Catalog

CONN FFC BOTTOM 28POS 0.5MM R/A

Part	Connector/Contact Type	Termination	Cable End Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Contact Finish	Height Above Board	Height Above Board	Housing Material	Current Rating (Amps)	Flat Flex Type	Number of Positions	FFC, FCB Thickness	Features	Locking Feature	Mounting Type	Pitch [x]	Pitch [x]	Actuator Material	Material Flammability Rating	Actuator Color	Mating Cycles	Housing Color	Contact Finish Thickness	Contact Finish Thickness
Molex 0524372891	Contacts Bottom	Solder	Straight	Phosphor Bronze	85 °C	-20 C	50 V	Tin	0.079 in	2 mm	Polyamide (PA46) Nylon 4/6	0.5 A	FFC FPC	28	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Flip Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS)	UL94 V-0
Molex 0524372372	Contacts Bottom	Solder	Straight	Phosphor Bronze	85 °C	-40 °C	50 V	Tin Bismuth	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.5 A	FFC FPC	23	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Flip Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	20	White
Molex 0524372833	Contacts Bottom	Solder	Straight Tapered	Phosphor Bronze	85 °C	-40 °C	50 V	Tin Bismuth	0.079 in	2 mm	Polyamide (PA) Nylon Glass Filled	0.5 A	FFC FPC	28	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	20	White	39.4 Áin	1 Ám
Molex 0524372733	Contacts Bottom	Solder	Straight Tapered	Phosphor Bronze	85 °C	-40 °C	50 V	Tin Bismuth	0.079 in	2 mm	Polyamide (PA) Nylon Glass Filled	0.5 A	FFC FPC	27	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	20	White	39.4 Áin	1 Ám

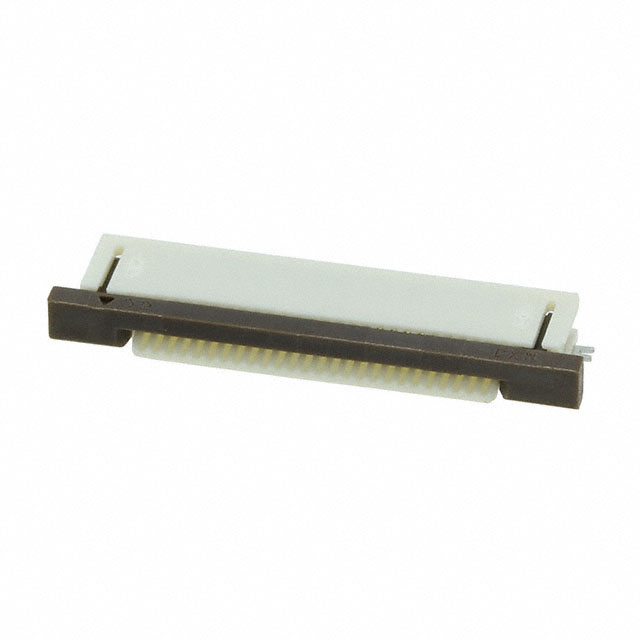

Molex 0524372671	Contacts Bottom	Solder	Straight Tapered	Phosphor Bronze	85 °C	-40 °C	50 V	Gold	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.5 A	FFC FPC	26	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	20	White

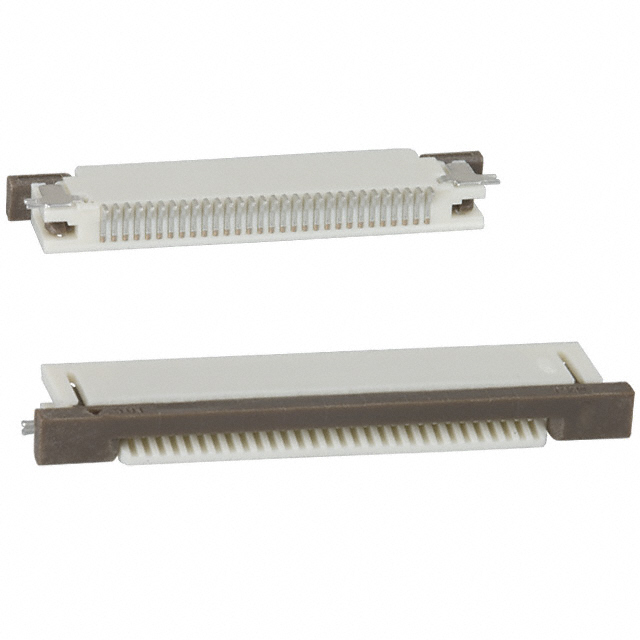

Molex 0524373072	Contacts Bottom	Solder	Straight	Phosphor Bronze	85 °C	-40 °C	50 V	Tin Bismuth	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.5 A	FFC FPC	30	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Flip Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	20	White

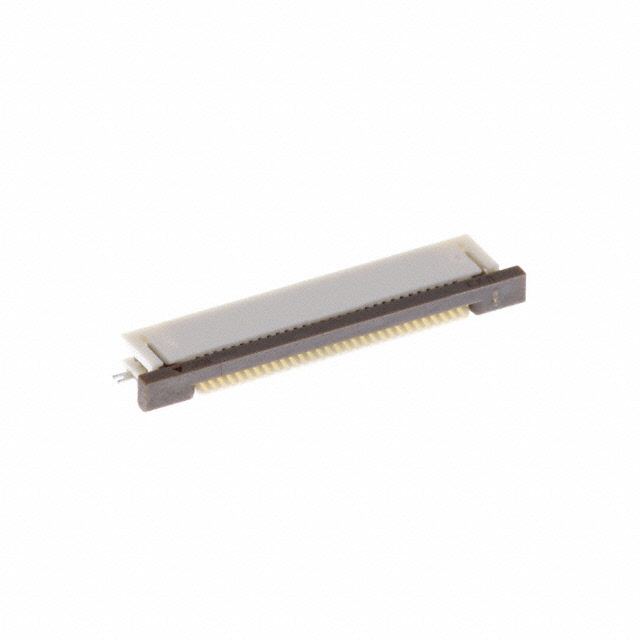

Molex 0524373071	Contacts Bottom	Solder	Straight Tapered	Phosphor Bronze	85 °C	-40 °C	50 V	Gold	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.5 A	FFC FPC	30	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	20	White

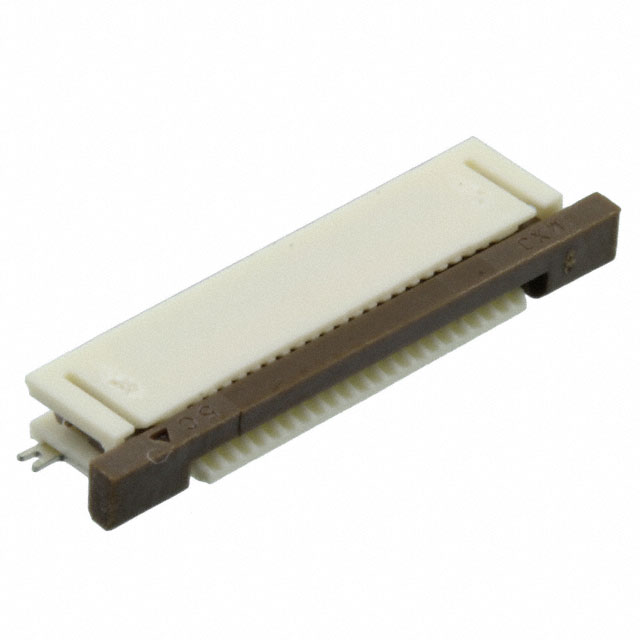

Molex 0524372271	Contacts Bottom	Solder	Straight Tapered	Phosphor Bronze	85 °C	-40 °C	50 V	Gold	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.5 A	FFC FPC	22 positions	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Slide Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	20	White

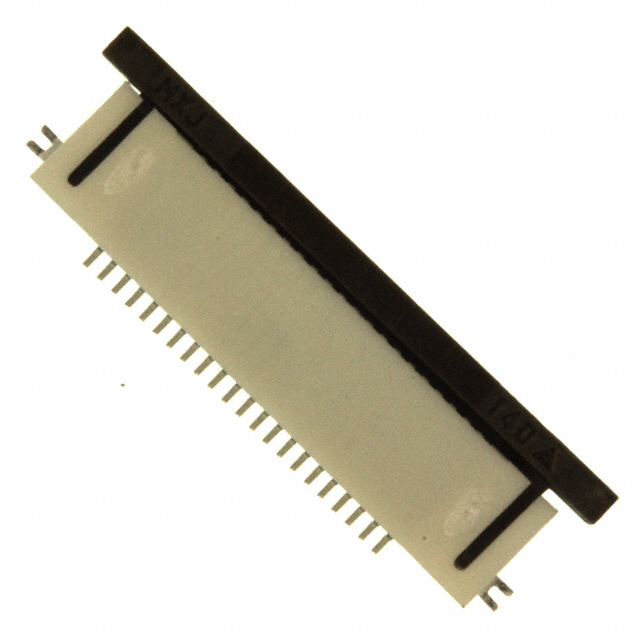

Molex 0524372272	Contacts Bottom	Solder	Straight	Phosphor Bronze	85 °C	-40 °C	50 V	Tin Bismuth	0.079 in	2 mm	Glass Filled Nylon 4/6 Polyamide (PA46)	0.5 A	FFC FPC	22 positions	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Flip Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS) Glass Filled	UL94 V-0	Brown	20	White
Molex 0524372691	Contacts Bottom	Solder	Straight	Phosphor Bronze	85 °C	-20 C	50 V	Tin	0.079 in	2 mm	Polyamide (PA46) Nylon 4/6	0.5 A	FFC FPC	26	0.3 mm	Solder Retention Zero Insertion Force (ZIF)	Flip Lock	Surface Mount Right Angle	0.5 mm	0.02 in	Polyphenylene Sulfide (PPS)	UL94 V-0
