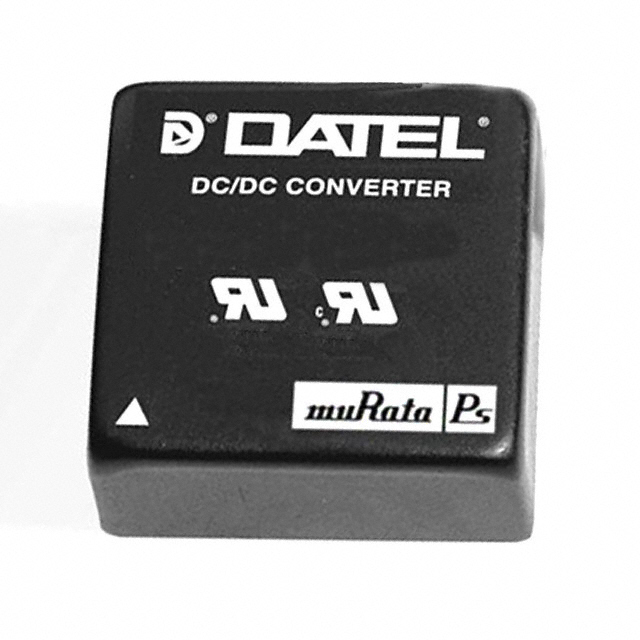

UWR-12 Series

Catalog

DC DC CONVERTER 12V 15W

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency	Mounting Type	Applications	Number of Outputs	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Output 1	Type	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]
Murata Electronics UWR-12/1250-D12A-C	12.2 mm	25.4 mm	50.8 mm	1 "	2 in	0.48 "	1.5 kV	10 VDC	18 V	85 %	Through Hole	ITE (Commercial)	1	6-DIP Module	85 °C	-40 C	1.25 A	12 V	Isolated Module	15 W
Murata Electronics UWR-12/750-D48A-C	9.7 mm	25.4 mm	50.8 mm	1 "	2 in	0.38 in	1.5 kV	18 V	75 V	82.5 %	Through Hole	ITE (Commercial)	1	5-DIP Module	70 °C	-40 C	750 mA	12 V	Isolated Module	9 W
Murata Electronics UWR-12/1650-D48A-C	0.45 " 11.4 mm	50.8 mm	50.8 mm				1.5 kV	18 V	75 V	85 %	Through Hole	ITE (Commercial)	1	8-DIP Module 6 Leads	65 °C	-40 C	1.65 A	12 V	Isolated Module	19 W
Murata Electronics UWR-12/1250-D24A-C	12.2 mm	25.4 mm	50.8 mm	1 "	2 in	0.48 "	1.5 kV	18 V	36 V	87 %	Through Hole	ITE (Commercial)	1	6-DIP Module	85 °C	-40 C	1.25 A	12 V	Isolated Module	15 W
Murata Electronics UWR-12/250-D5-C			31.8 mm	0.8 "	1.25 in	0.45 in	1.5 kV	4.5 V	9 V	75 %	Through Hole	ITE (Commercial)	1	8-DIP Module	75 ░C	-25 °C	250 mA	12 V	Isolated Module	3 W	20.3 mm	11.4 mm
