SE75 Series

Catalog

PAN-WRAP BRAIDED SLEEVING, .75" DIA., 10

Part	Type Attributes	Diameter - Inside, Non-Expanded [diameter]	Diameter - Inside, Non-Expanded [diameter]	Length	Length	Diameter - Inside, Expanded [diameter]	Diameter - Inside, Expanded [diameter]	Wall Thickness	Wall Thickness	Color	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Type	Abrasion Protection	Features	Environment Protection [custom]	Heat Protection	Material	Length [x]	Length [x]
Panduit Corp SE75PSFR-CR0	Expandable	0.75 in	19.05 mm	100 '	30.48 m	31.75 mm	1.25 in	0.64 mm	0.025 in	Black	-70 °C	125 °C	UL VW-1	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant	Flame Retardant	Polyethylene Terephthalate (PET) Halogen Free

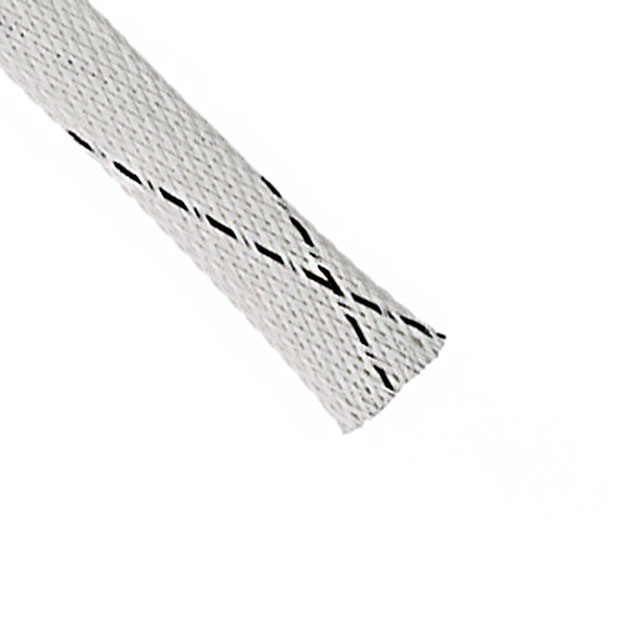

Panduit Corp SE75PFR-DR10	Expandable	0.75 in	19.05 mm			31.75 mm	1.25 in	0.64 mm	0.025 in	White	-70 °C	125 °C	UL VW-1	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant	Flame Retardant	Polyethylene Terephthalate (PET) Halogen Free	152.4 m	500 ft
Panduit Corp SE75PS-CR0	Expandable	0.75 in	19.05 mm	100 '	30.48 m	31.75 mm	1.25 in	0.64 mm	0.025 in	Black	-70 °C	125 °C	UL94 V-0	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant		Polyethylene Terephthalate (PET) Halogen Free
Panduit Corp SE75PFR-CR0	Expandable	0.75 in	19.05 mm	100 '	30.48 m	31.75 mm	1.25 in	0.64 mm	0.025 in	Black White	-70 °C	125 °C	UL VW-1	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant	Flame Retardant	Polyethylene Terephthalate (PET) Halogen Free
Panduit Corp SE75PFR-DR0	Expandable	0.75 in	19.05 mm			31.75 mm	1.25 in	0.64 mm	0.025 in	Black White	-70 °C	125 °C	UL VW-1	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant	Flame Retardant	Polyethylene Terephthalate (PET) Halogen Free	152.4 m	500 ft
Panduit Corp SE75P-CR0	Expandable	0.75 in	19.05 mm	100 '	30.48 m	31.75 mm	1.25 in	0.64 mm	0.025 in	Black	-70 °C	125 °C	UL94 V-0	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant		Polyethylene Terephthalate (PET) Halogen Free
Panduit Corp SE75P-DR0	Expandable	0.75 in	19.05 mm			31.75 mm	1.25 in	0.64 mm	0.025 in	Black	-70 °C	125 °C	UL94 V-0	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant		Polyethylene Terephthalate (PET) Halogen Free	152.4 m	500 ft
Panduit Corp SE75PFR-CR8	Expandable	0.75 in	19.05 mm	100 '	30.48 m	31.75 mm	1.25 in	0.64 mm	0.025 in	Gray White	-70 °C	125 °C	UL VW-1	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant	Flame Retardant	Polyethylene Terephthalate (PET) Halogen Free

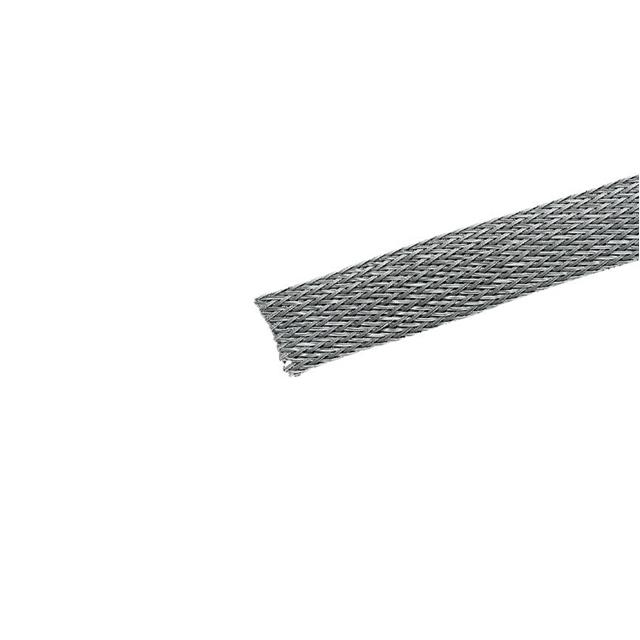

Panduit Corp SE75P-CR8	Expandable	0.75 in	19.05 mm	100 '	30.48 m	31.75 mm	1.25 in	0.64 mm	0.025 in	Gray	-70 °C	125 °C	UL94 V-0	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant		Polyethylene Terephthalate (PET) Halogen Free

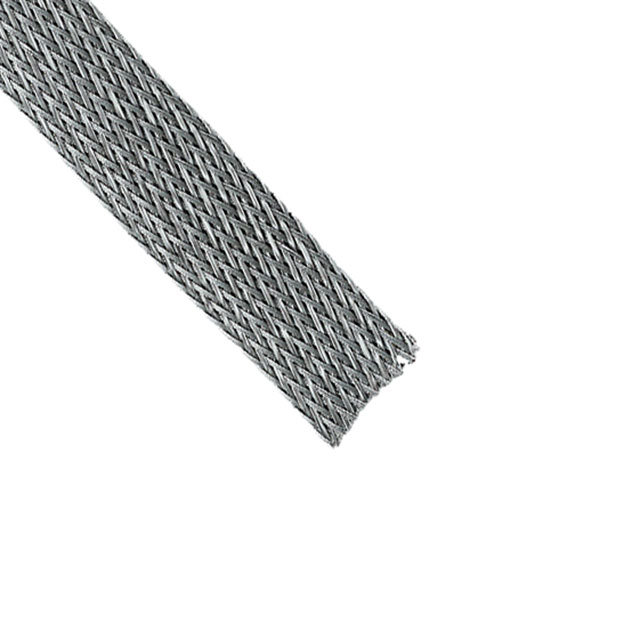

Panduit Corp SE75P-DR8	Expandable	0.75 in	19.05 mm			31.75 mm	1.25 in	0.64 mm	0.025 in	Gray	-70 °C	125 °C	UL94 V-0	Sleeve	Abrasion Resistant	Noise Reduction Vibration Resistant	UV Resistant		Polyethylene Terephthalate (PET) Halogen Free	152.4 m	500 ft
