CIRHSE06 Series
Manufacturer: TE Connectivity AMP Connectors
Catalog
CONN CIRCULAR SKT 5 POS CRIMP ST CABLE MOUNT 5 TERMINAL 1 PORT
| Part | Insert Material | Contact Shape | Note | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material | Housing Color | Contact Size | Shielding | Mounting Type | Contact Type | Fastening Type | Number of Positions | Type | Orientation | Ingress Protection | Connector Type | Features | Shell Size - Insert [Min] | Shell Size - Insert [Max] | Shell Finish | Shell Size - Insert | Contact Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | 12 | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 5 | For Female Sockets | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | 18 | 11 | Zinc Cobalt | ||

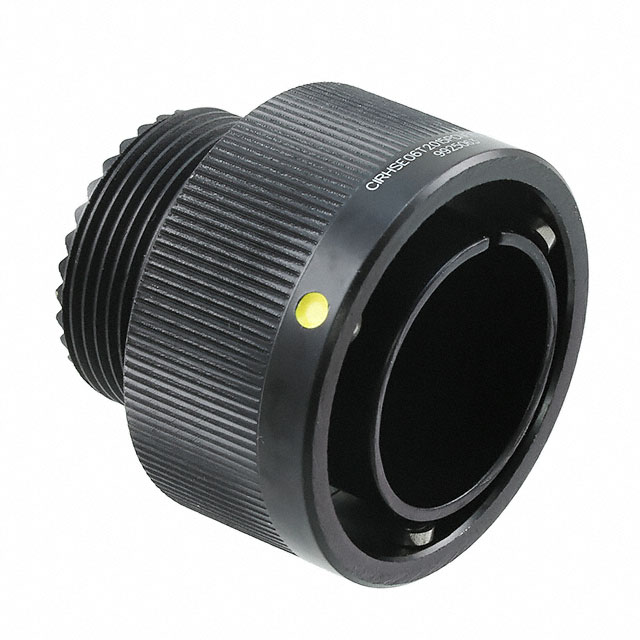

 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | 12 | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 7 | For Male Pins | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | 15 | 20 | Zinc Cobalt | ||
 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | 8 | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 7 | For Female Sockets | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | 24 | 10 | Zinc Cobalt | ||

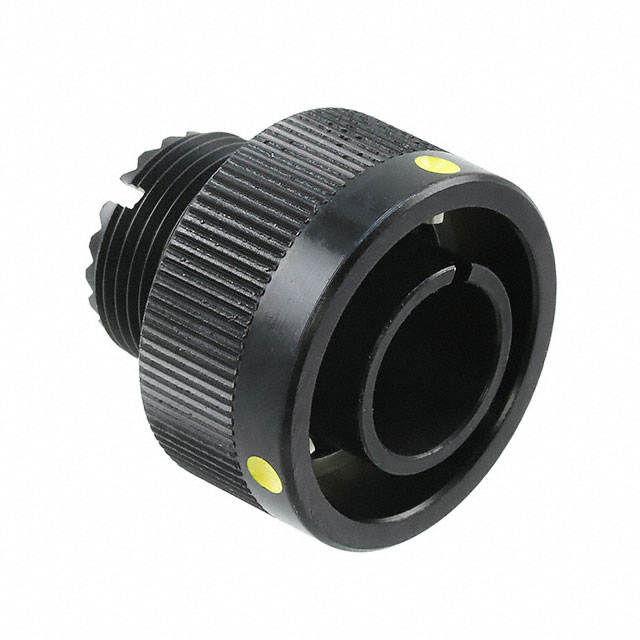

 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 6 | For Male Pins | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | Zinc Cobalt | 14S-6 | 16S | |||

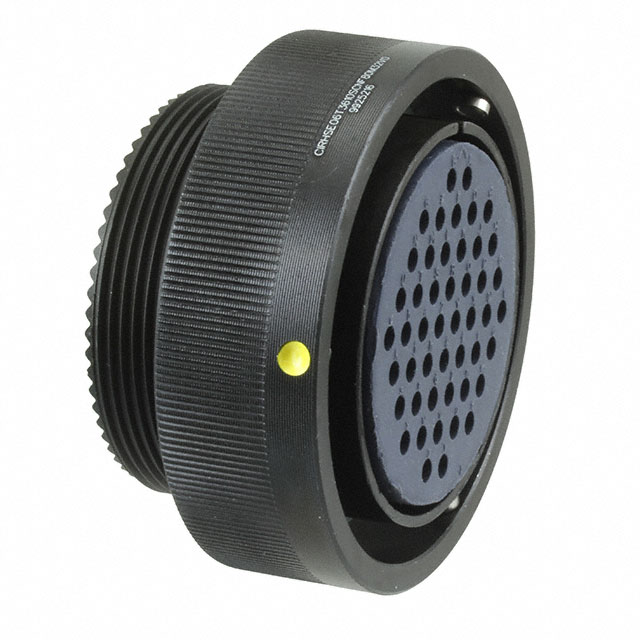

 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | 16 | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 48 | For Female Sockets | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | Zinc Cobalt | 36-10 | |||

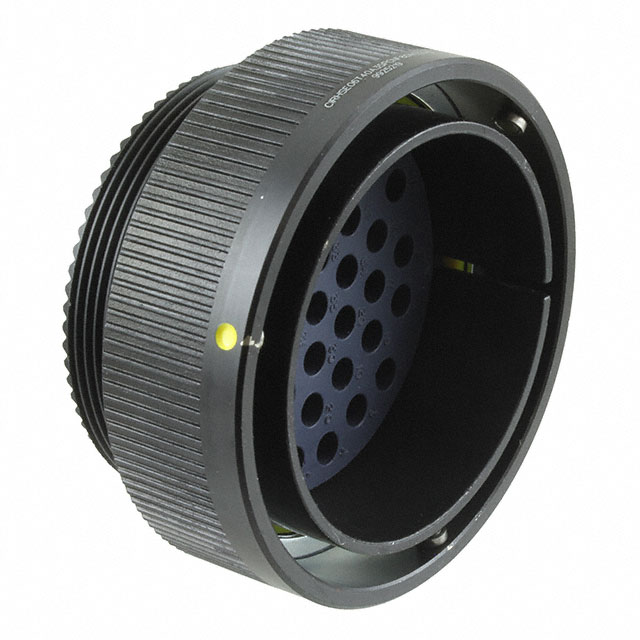

 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | 12 | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 35 | For Male Pins | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | Zinc Cobalt | 40-A35 | |||
 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | 12 | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 13 | For Male Pins | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | Zinc Cobalt | 32-A13 | |||

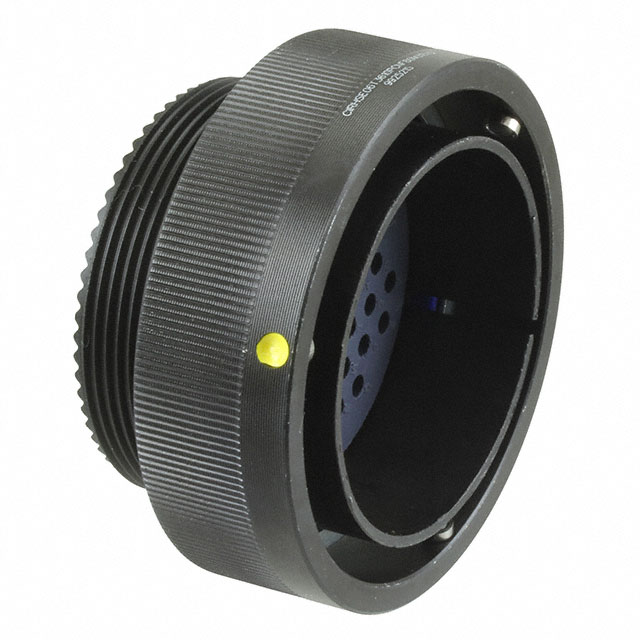

 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | 16 | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 48 | For Male Pins | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | Zinc Cobalt | 36-10 | |||

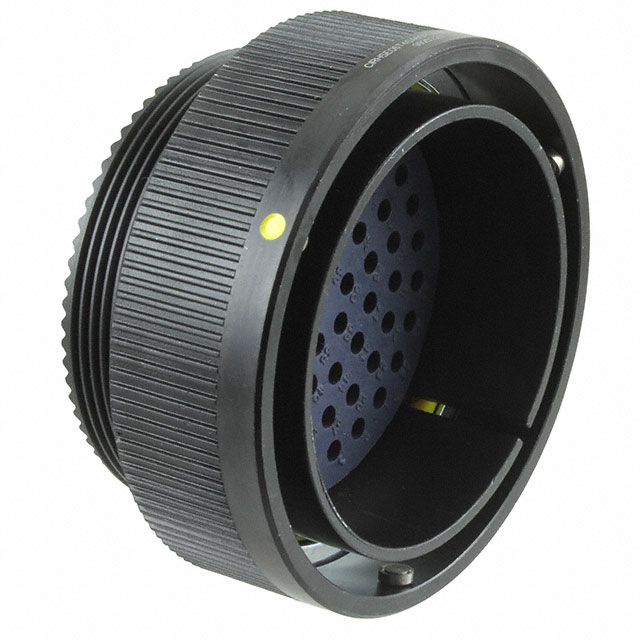

 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | 16 | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 60 | For Male Pins | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | Zinc Cobalt | 40-A60 | |||

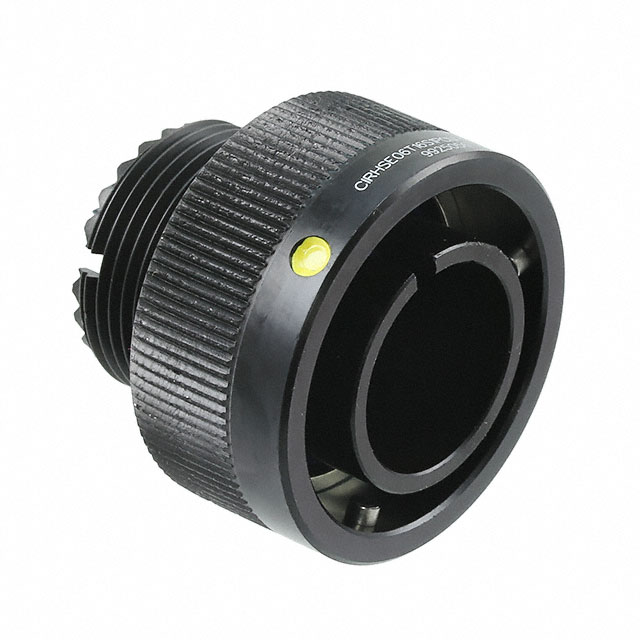

 TE Connectivity AMP Connectors | Halogen Free Rubber | Circular | Contacts Not Included | 200 °C | -55 C | Aluminum Alloy | Black | Shielded | Free Hanging (In-Line) | Crimp | Bayonet Lock | 7 | For Male Pins | N (Normal) | IP67 - Dust Tight Waterproof | Plug Housing | Coupling Nut | Zinc Cobalt | 16S-1 | 16S |
