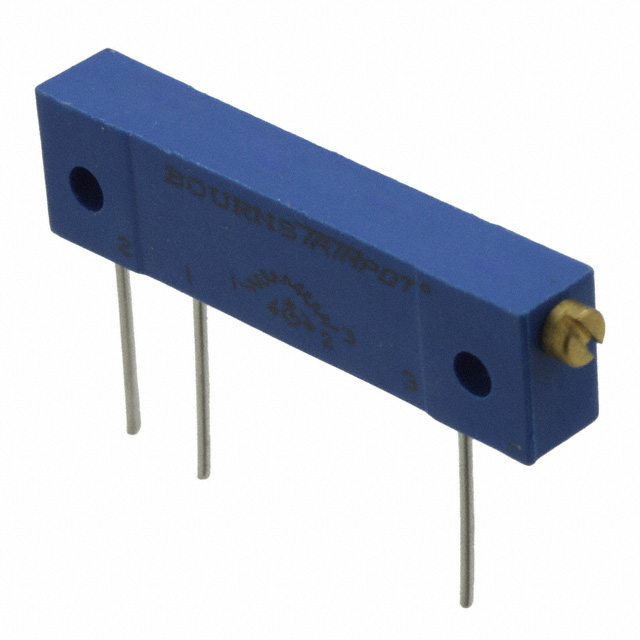

3059P Series

Catalog

TRIMMER 5K OHM 1W PC PIN SIDE

Part	Power (Watts)	Resistance	Tolerance	Resistive Material	Adjustment Type	Number of Turns	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Termination Style
Bourns Inc. 3059P-1-502LF	1 W	5 kOhms	10 %	Cermet	Side Adjustment	22	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-103MLF	1 W	10000 Ohms	10 %	Cermet	Side Adjustment	22	Panel Mount Through Hole	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-503MLF	1 W	50000 Ohms	10 %	Cermet	Side Adjustment	22	Panel Mount Through Hole	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-101MLF	1 W	100 Ohms	10 %	Cermet	Side Adjustment	22	Panel Mount Through Hole	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-104	1 W	100 kOhms	10 %	Cermet	Side Adjustment	22	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-222LF	1 W	2200 Ohms	10 %	Cermet	Side Adjustment	22	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-201MLF	1 W	200 Ohms	10 %	Cermet	Side Adjustment	22	Panel Mount Through Hole	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-505	1 W	5000000 Ohms	10 %	Cermet	Side Adjustment	22	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-201	1 W	200 Ohms	10 %	Cermet	Side Adjustment	22	Chassis Mount	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
Bourns Inc. 3059P-1-102MLF	1 W	1000 Ohms	10 %	Cermet	Side Adjustment	22	Panel Mount Through Hole	0.315 in	4.83 mm	0.19 in	8 mm	100 ppm/°C	PC Pins
