415-47 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN SOCKET 12POS 0.1 GOLD PCB

Part	Insulation Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Number of Rows [custom]	Contact Finish - Mating	Number of Positions Loaded	Fastening Type	Current Rating (Amps)	Insulation Height [z]	Insulation Height [z]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Type	Insulation Color	Termination	Connector Type	Voltage Rating	Voltage Rating	Material Flammability Rating

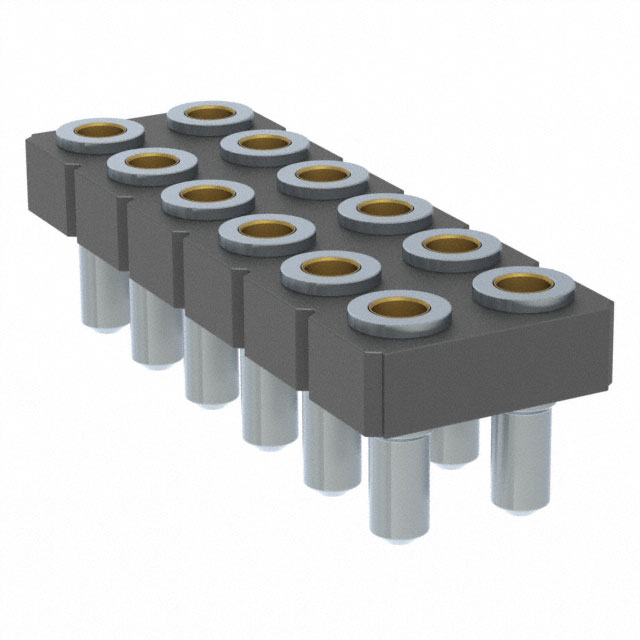

Mill-Max Manufacturing Corp. 415-47-212-41-004000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	12	-55 C	125 °C	Flash	2	Gold	All	Push-Pull	3 A	1.27 mm	0.05 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	Tin	2.08 mm	0.082 in	Female Socket	Black	Solder	Socket

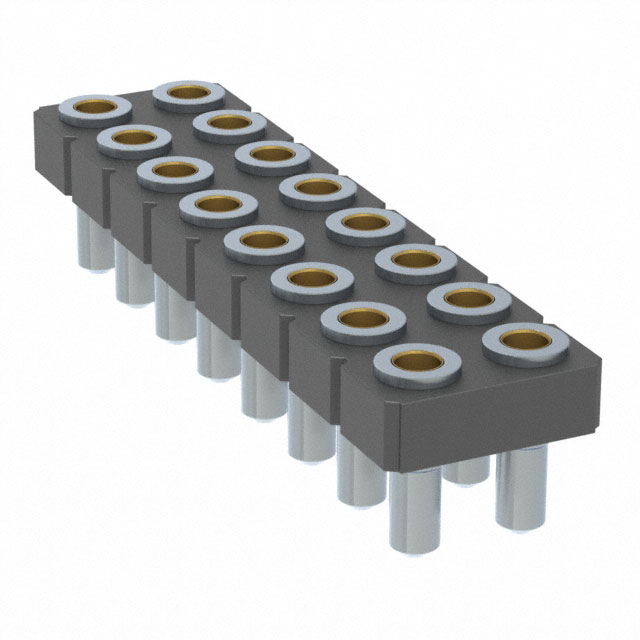

Mill-Max Manufacturing Corp. 415-47-216-41-004000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	16	-55 C	125 °C	Flash	2	Gold	All	Push-Pull	3 A	1.27 mm	0.05 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	Tin	2.08 mm	0.082 in	Female Socket	Black	Solder	Socket
Mill-Max Manufacturing Corp. 415-47-230-41-004000	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	30	-55 C	125 °C	Flash	2	Gold	All	Push-Pull	3 A	1.27 mm	0.05 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	Tin	2.08 mm	0.082 in	Female Socket	Black	Solder	Socket	100 V	150 VDC	UL94 V-0

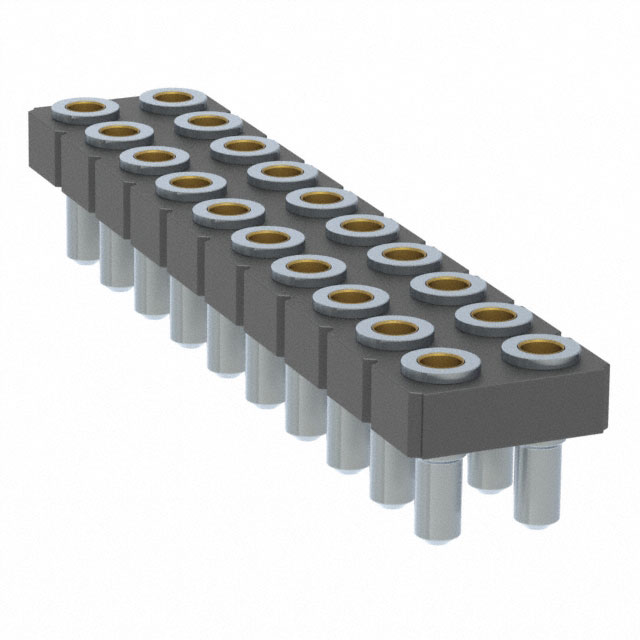

Mill-Max Manufacturing Corp. 415-47-220-41-004000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Circular	200 µin	5.08 µm	Beryllium Copper	20	-55 C	125 °C	Flash	2	Gold	All	Push-Pull	3 A	1.27 mm	0.05 in	0.1 in	2.54 mm	0.1 "	2.54 mm	Through Hole	Tin	2.08 mm	0.082 in	Female Socket	Black	Solder	Socket
