TPS65286 Series
Manufacturer: Texas Instruments
Beta
⌘K
4.5V TO 28V INPUT, 6A OUTPUT SYNCHRONOUS BUCK CONVERTER WITH DUAL LOAD SWITCHES
| Part | Rds On (Typ) | Mounting Type | Output Type | Number of Outputs | Switch Type | Package / Case | Fault Protection | Ratio - Input:Output | Voltage - Load [Min] | Voltage - Load [Max] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Output Configuration | Current - Output (Max) [Max] | Outputs and Type | Outputs and Type | Supplied Contents | Board Type | Regulator Topology | Voltage - Output | Contents | Main Purpose | Utilized IC / Part | Current - Output | Frequency - Switching | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 100 mOhm | Surface Mount | N-Channel | 2 | General Purpose | 28-VFQFN Exposed Pad | Current Limiting (Adjustable) Over Temperature Over Voltage UVLO | 1:1 | 4.5 V | 28 V | Slew Rate Controlled Status Flag | -40 C | 125 °C | 28-VQFN (5x5) | High Side | 6 A | |||||||||||||
Texas Instruments | 100 mOhm | Surface Mount | N-Channel | 2 | General Purpose | 28-VFQFN Exposed Pad | Current Limiting (Adjustable) Over Temperature Over Voltage UVLO | 1:1 | 4.5 V | 28 V | Slew Rate Controlled Status Flag | -40 C | 125 °C | 28-VQFN (5x5) | High Side | 6 A | |||||||||||||

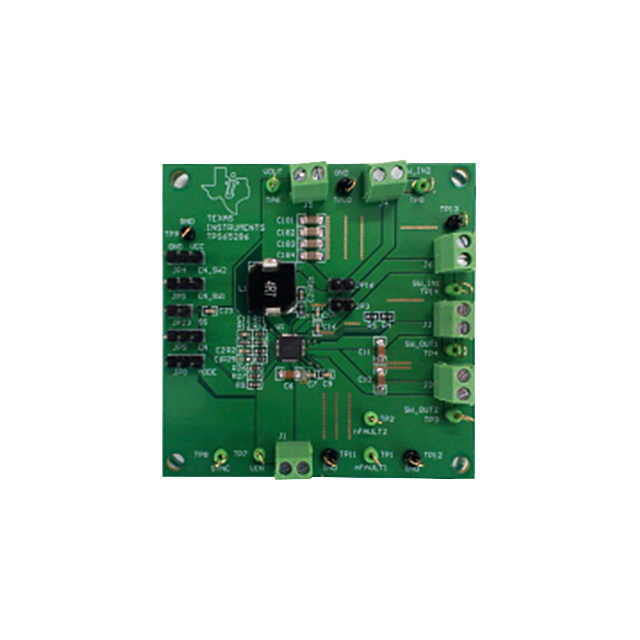

 Texas Instruments | 1 | 1 Non-Isolated Output Non-Isolated | Board(s) | Fully Populated | Buck | 5 V | Board(s) | DC/DC Step Down | TPS65286 | 6 A | 500 kHz | 4.5 V | 28 V |
