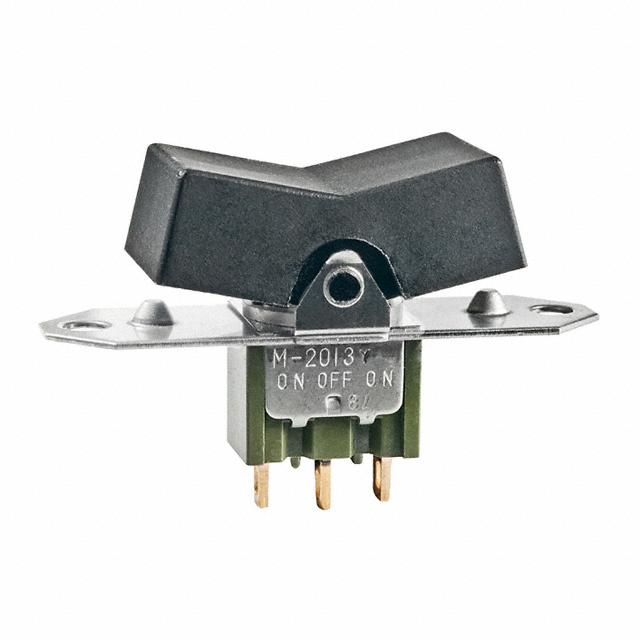

M2013TY Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER SPDT 0.4VA 28V
| Part | Mechanical Life | Electrical Life | Actuator Type | Color - Actuator/Cap | Actuator Marking | Termination Style | Current Rating (Amps) | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Approval Agency | Mounting Type | Voltage Rating - AC | Operating Temperature [Max] | Operating Temperature [Min] | Features | Voltage Rating - DC | Switch Function | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 50000 Cycles | 50000 Cycles | Concave | Black | No Marking | Solder Lug | 0.4 VA | 16 mm | 28.5 mm | CSA UL | Flange Panel Mount | 28 V | 85 °C | -30 ░C | Epoxy Sealed Terminals | 28 V | On-Off-On | SPDT |
 NKK Switches | 50000 Cycles | 50000 Cycles | Actuator Arm Cap Required | Varies by Cap | Solder Lug | 0.4 VA | 16 mm | 28.5 mm | CSA UL | Flange Panel Mount | 28 V | 85 °C | -30 ░C | Epoxy Sealed Terminals | 28 V | On-Off-On | SPDT |
