TUSB319-Q1 Series

Automotive USB Type-C DFP Port Controller

Catalog

Automotive USB Type-C DFP Port Controller

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Supply	Mounting Type	Qualification	Supplier Device Package	Applications	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Utilized IC / Part	Function	Supplied Contents	Type
Texas Instruments TUSB319IDRFRQ1	3.8 V	5.5 V	330 µA	Surface Mount	AEC-Q100	8-WSON (2x2)	Type-C Controller USB	Automotive	85 °C	-40 °C	8-WFDFN Exposed Pad

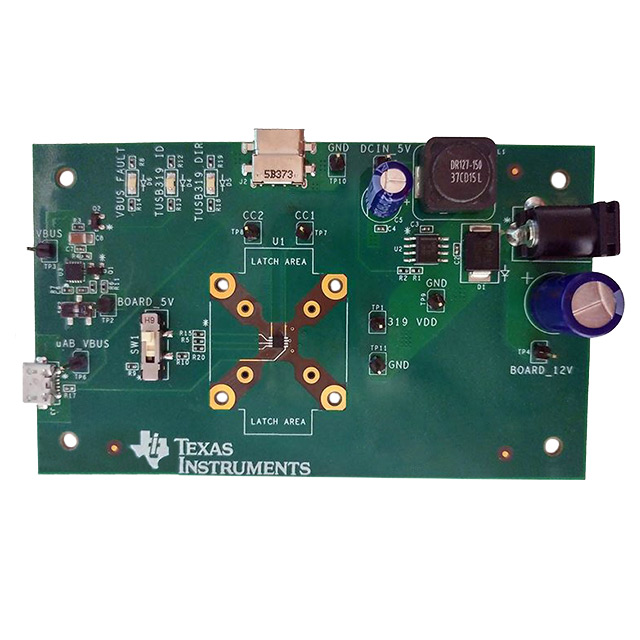

Texas Instruments TUSB319EVM												TUSB319-Q1	USB Type-C®	Board(s)	Interface

Catalog

Automotive USB Type-C DFP Port Controller

Key Features

• Meets USB Type-C™ SpecificationsSupports DFP (Host/Source) Applications with up to 15W PowerSupports Type-C Current Mode Advertisement up to 3 A (Default, 1.5 A, 3 A)Provides Type-C Plug OrientationChannel Configuration (CC)Attach of USB Port DetectionCable Orientation DetectionVBUSDetectionSupply Voltage: 3.8 V to 5.5 VLow Current Consumption2 × 2 mm WSON Package with 0.5 mm PitchIndustrial Temperature Range of –40°C to 85°CMeets USB Type-C™ SpecificationsSupports DFP (Host/Source) Applications with up to 15W PowerSupports Type-C Current Mode Advertisement up to 3 A (Default, 1.5 A, 3 A)Provides Type-C Plug OrientationChannel Configuration (CC)Attach of USB Port DetectionCable Orientation DetectionVBUSDetectionSupply Voltage: 3.8 V to 5.5 VLow Current Consumption2 × 2 mm WSON Package with 0.5 mm PitchIndustrial Temperature Range of –40°C to 85°C

Description

The TUSB319-Q1 is a USB Type-C Downstream Facing Port (DFP) controller. The TUSB319-Q1 monitors the USB Type-C Configuration Channel (CC) lines to determine when an USB device is attached. If an Upstream Facing Port (UFP) device is attached, the TUSB319-Q1 drives an open drain output ID that can be used in the system to apply VBUS power. The device also communicates the selectable VBUS current sourcing capability to the UFP via the CC lines. The TUSB319-Q1 is a USB Type-C Downstream Facing Port (DFP) controller. The TUSB319-Q1 monitors the USB Type-C Configuration Channel (CC) lines to determine when an USB device is attached. If an Upstream Facing Port (UFP) device is attached, the TUSB319-Q1 drives an open drain output ID that can be used in the system to apply VBUS power. The device also communicates the selectable VBUS current sourcing capability to the UFP via the CC lines.
