FR01AR16 Series

Catalog

SWITCH ROTARY DIP HEX 0.1A 5V

Part	Body Material	Length	Length	Electrical Life	Mechanical Life	Actuator Level	Height Above Board [z]	Height Above Board [z]	Termination Style	Circuit	Voltage Rating	Mounting Type	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Contact Material	Actuator Type	Pitch	Pitch	Contact Finish	Height Above Board	Height Above Board
NKK Switches FR01AR16PB-W	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised	28.05 mm	1.104 in	PC Pin	Hexadecimal	5 V	Panel Mount	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold
NKK Switches FR01AR16PB	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised	28.05 mm	1.104 in	PC Pin	Hexadecimal	5 V	Panel Mount	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold
NKK Switches FR01AR16H	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised			PC Pin	Hexadecimal	5 V	Panel Mount Right Angle	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold	0.433 in	11 mm
NKK Switches FR01AR16HB-S	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised			PC Pin	Hexadecimal	5 V	Panel Mount Right Angle	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold	0.433 in	11 mm
NKK Switches FR01AR16HB-06XL	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised			PC Pin	Hexadecimal	5 V	Panel Mount Right Angle	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold	0.433 in	11 mm
NKK Switches FR01AR16PB-S	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised	28.05 mm	1.104 in	PC Pin	Hexadecimal	5 V	Panel Mount	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold
NKK Switches FR01AR16HB-06XL-S	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised			PC Pin	Hexadecimal	5 V	Panel Mount Right Angle	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold	0.433 in	11 mm
NKK Switches FR01AR16HB-06XL-W	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised			PC Pin	Hexadecimal	5 V	Panel Mount Right Angle	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold	0.433 in	11 mm

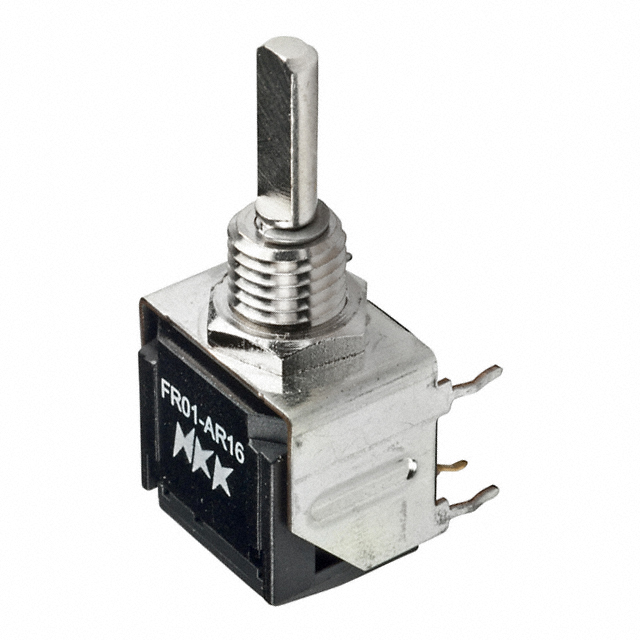

NKK Switches FR01AR16HB	Polyamide (PA) Nylon Glass Filled	0.516 in	13.11 mm	10000 Cycles	10000 Steps	Raised			PC Pin	Hexadecimal	5 V	Panel Mount Right Angle	16	85 °C	-25 °C	100 mA	Copper Alloy	Rotary with Shaft	2.54 mm	0.1 "	Gold	0.433 in	11 mm
