TLHB-88R Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

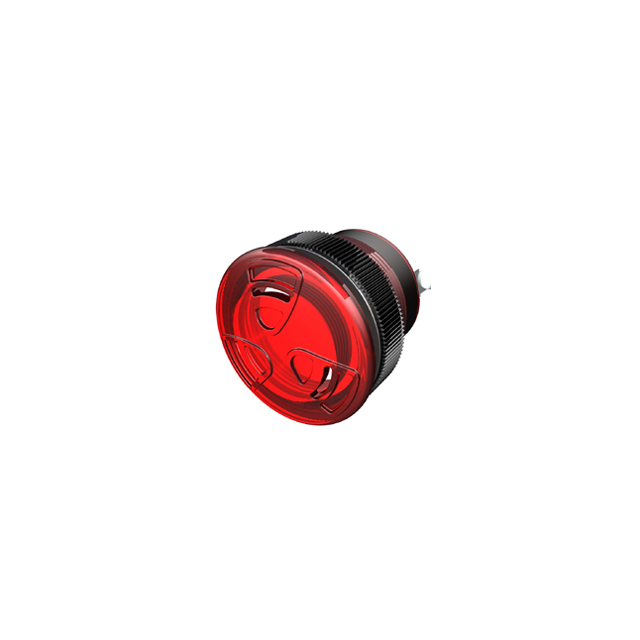

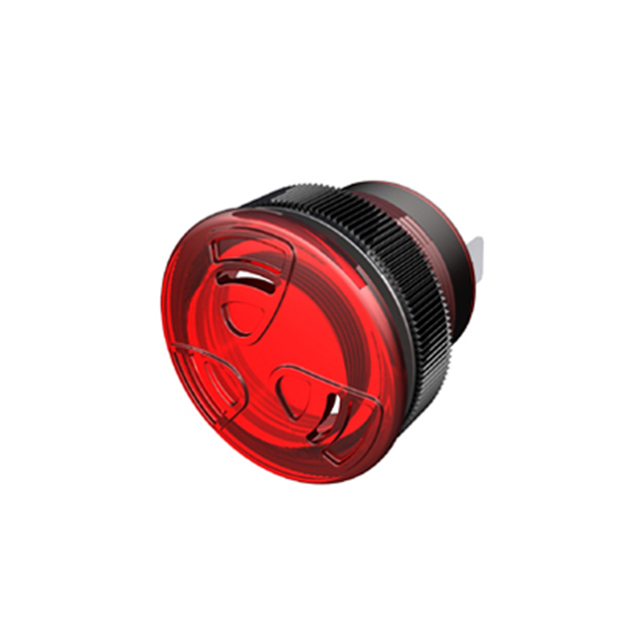

BUZZER 33MM PNL MNT
| Part | Input Type | Sound Pressure Level (SPL) | Ingress Protection | Driver Circuitry | Voltage Range [Max] | Voltage Range [Min] | Current - Supply [Min] [x] | Current - Supply [Max] [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Termination | Termination | Termination | Approval Agency | Port Location | Frequency | Operating Mode | Size / Dimension [diameter] | Size / Dimension [diameter] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | DC | 103 dB | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 30 V | 9 V | 50 mA | 110 mA | 29.97 mm | 1.18 in | Quick Connect Tab | 0.25 " | 6.35 mm | UL UR | Top | 2.9 kHz | Pulse Slow | 1.299 in | 33 mm | Panel Mount |
Floyd Bell Inc | DC | 103 dB | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 30 V | 9 V | 50 mA | 110 mA | 29.97 mm | 1.18 in | Quick Connect Tab | 0.25 " | 6.35 mm | UL UR | Top | 2.9 kHz | Fast Pulse | 1.3 in | 33.02 mm | Panel Mount |
 Floyd Bell Inc | DC | 103 dB | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 30 V | 9 V | 50 mA | 110 mA | 29.97 mm | 1.18 in | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | UL UR | Top | 2.9 kHz | Fast Pulse | 1.299 in | 33 mm | Panel Mount |
Floyd Bell Inc | DC | 103 dB | IP68 - Dust Tight Waterproof | Indicator Internally Driven | 30 V | 9 V | 50 mA | 110 mA | 29.97 mm | 1.18 in | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | UL UR | Top | 2.9 kHz | Pulse Slow | 1.3 in | 33.02 mm | Panel Mount |
