Automotive, Molded Red chip LED
Description
AI

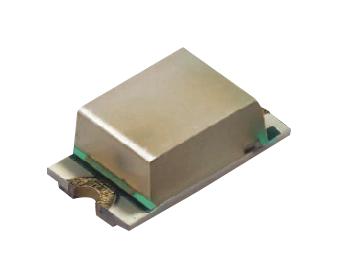

SML-H1(C) series is an Automotive grade mold type surface mount chip LED compliant with AEC-Q101.
Beta
⌘K
Automotive, Molded Red chip LED
Automotive, Molded Red chip LED
| Part | Color | Current - Test | Wavelength - Dominant | Voltage - Forward (Vf) (Typ) | Height (Max) [Max] [z] | Size / Dimension [x] | Size / Dimension [y] | Grade | Lens Size [x] | Lens Size [y] | Millicandela Rating | Lens Transparency | Lens Style | Lens Color | Configuration | Supplier Device Package | Supplier Device Package | Package / Case | Mounting Type | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | Yellow | 20 mA | 590 nm | 2.2 V | 0.9 mm | 2 mm | 1.25 mm | Automotive | 1.52 mm | 1.25 mm | 63 mcd | Clear | Rectangle with Flat Top | Colorless | Standard | 2012 | 0805 | 0805 | Surface Mount | AEC-Q101 |
 Rohm Semiconductor | Green | 20 mA | 560 nm | 2.2 V | 0.9 mm | 2 mm | 1.25 mm | 1.52 mm | 1.25 mm | 4 mcd | Clear | Rectangle with Flat Top | Colorless | Standard | 2012 | 0805 | 0805 | Surface Mount | ||
 Rohm Semiconductor | Red | 20 mA | 630 nm | 2.2 V | 0.9 mm | 2 mm | 1.25 mm | Automotive | 1.52 mm | 1.25 mm | 25 mcd | Clear | Rectangle with Flat Top | Colorless | Standard | 2012 | 0805 | 0805 | Surface Mount | AEC-Q101 |
