78198 Series

Catalog

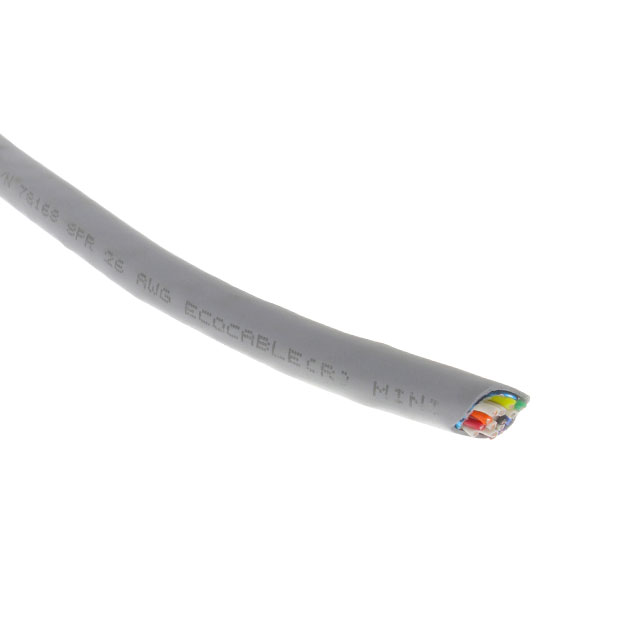

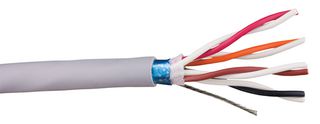

MULTIPAIR CABLE, ECOGEN™ ECOCABLE® MINI, SHIELDED, 8 PAIR, 20 AWG, 0.616 MM², 1000 FT, 305 M

Part	Number of Conductors	Wire Gauge	Shield Coverage	Conductor Insulation	Jacket Color	Length	Length	Jacket (Insulation) Material	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Conductor Strand [custom]	Conductor Strand [custom]	Features	Conductor Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Shield Material	Cable Type	Length [x]	Length [x]
ALPHA WIRE 78198 SL001	16	20 AWG	100 %	Polyphenylene Ether Modified (mPPE)	Slate	1000 ft	304.8 m	Polyphenylene Ether Modified (mPPE)	-40 °C	80 C	ISO 10993 UL Style 21460	19	32 AWG	Biological Compatibility Drain Wire Rip Cord	Copper Tinned	300 V	0.015 in	0.381 mm	Foil	Aluminum	Multi-Pair
ALPHA WIRE 78198 SL199	16	20 AWG	100 %	Polyphenylene Ether Modified (mPPE)	Slate	1 ft	300 mm	Polyphenylene Ether Modified (mPPE)	-40 °C	80 C	ISO 10993 UL Style 21460	19	32 AWG	Biological Compatibility Drain Wire Rip Cord	Copper Tinned	300 V	0.015 in	0.381 mm	Foil	Aluminum	Multi-Pair
ALPHA WIRE 78198 SL005	16	20 AWG	100 %	Polyphenylene Ether Modified (mPPE)	Slate			Polyphenylene Ether Modified (mPPE)	-40 °C	80 C	ISO 10993 UL Style 21460	19	32 AWG	Biological Compatibility Drain Wire Rip Cord	Copper Tinned	300 V	0.015 in	0.381 mm	Foil	Aluminum	Multi-Pair	30.5 m	100 ft
