LE CG P1 Series

Catalog

LED OSTAR ON DEMAND GREEN 1X2

Part	Type	Color	Lumens/Watt @ Current - Test	Voltage - Forward (Vf) (Typ)	Lens Type	Configuration	Size / Dimension [y]	Size / Dimension [x]	Viewing Angle	Luminous Flux @ Current/Temperature	Current - Max [Max]	Features	Temperature - Test	Height	Current - Test	Height [z]	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	Wavelength
ams-OSRAM USA INC. LE CG P1A-7T8T-1-0-F00-T01	LED Module	Green	94 lm/W	3.55 V	Flat	Rectangle	15.5 mm	27 mm	120 °	4025 lm	10 A	With Connector	25 °C	1.8 mm	12 A

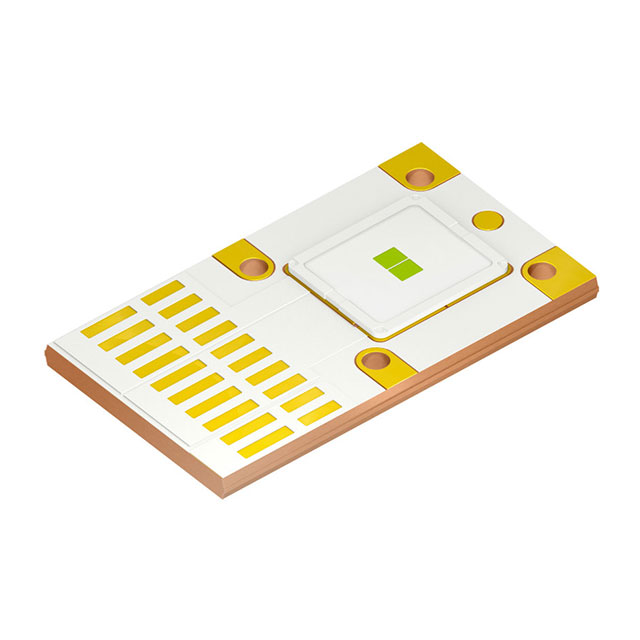

ams-OSRAM USA INC. LE CG P1AQ-TUUS-A-0-F00	LED Module	Green	117 lm/W	7 V	Flat	Rectangle	15.5 mm	27 mm	120 °	4910 lm	10 A	With Connector	25 °C		6 A	1.9 mm	5630 lm	4190 lm

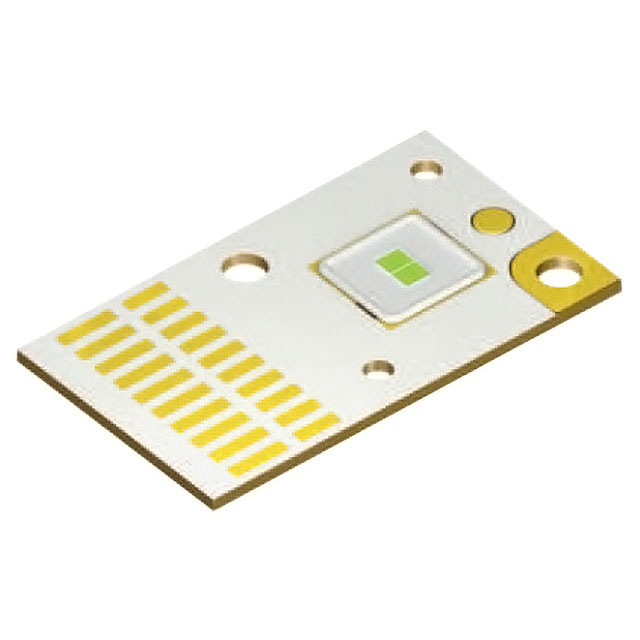

ams-OSRAM USA INC. LE CG P1A-6T5U-A	LED Module	Green	96 lm/W	3.55 V	Flat	Rectangle	15.5 mm	27 mm	120 °	4075 lm			25 °C	1.8 mm	12 A				520 nm
ams-OSRAM USA INC. LE CG P1A-5T5U-A-0-F00-T01	LED Module	Green		3.55 V	Flat	Rectangle	15.5 mm	27 mm	120 °		10 A	With Connector	25 °C	1.8 mm	12 A
ams-OSRAM USA INC. LE CG P1A-7T6U-A-0-F00-T01	LED Module	Green	107 lm/W	3.55 V	Flat	Rectangle	15.5 mm	27 mm	120 °	4575 lm	10 A	With Connector	25 °C	1.8 mm	12 A
ams-OSRAM USA INC. LE CG P1A-7T5U-A-0-F00-T01	LED Module	Green	100 lm/W	3.55 V	Flat	Rectangle	15.5 mm	27 mm	120 °	4275 lm	10 A	With Connector	25 °C	1.8 mm	12 A
ams-OSRAM USA INC. LE CG P1A-8T5U-A-0-F00-T01	LED Module	Green	106 lm/W	3.55 V	Flat	Rectangle	15.5 mm	27 mm	120 °	4500 lm	10 A	With Connector	25 °C	1.8 mm	12 A
