FKR1105 Series
Manufacturer: Stanley Electric Co
Beta
⌘K

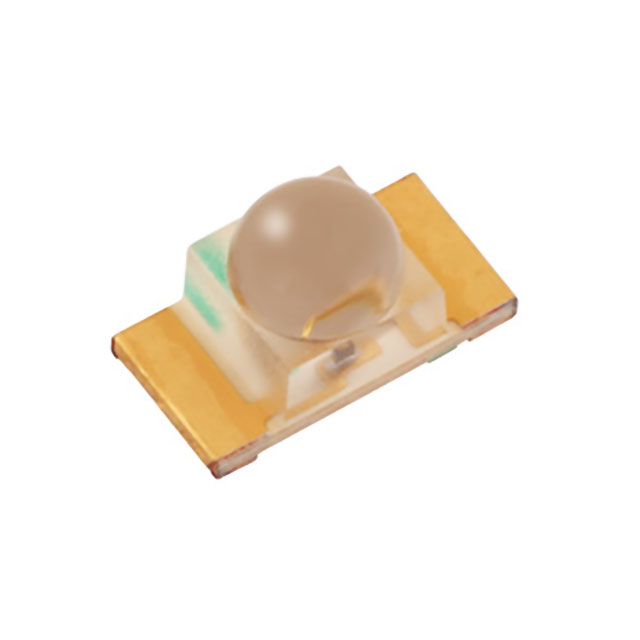

LED UNI-COLOR RED 638NM 2-PIN CHIP 3216 T/R
| Part | Package / Case | Current - Test | Voltage - Forward (Vf) (Typ) | Supplier Device Package | Size / Dimension [y] | Size / Dimension [x] | Height (Max) [z] | Lens Color | Mounting Type | Wavelength - Peak | Lens Style | Configuration | Lens Size [diameter] | Color | Lens Transparency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Stanley Electric Co | 1206 (3016 Metric) 1206 (3216 Metric) | 20 mA | 2.2 V | 3216 Type | 1.6 mm | 3.2 mm | 1.95 mm | Colorless | Surface Mount | 638 nm | Round with Domed Top | Standard | 1.6 mm | Red | Clear |
