6328 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

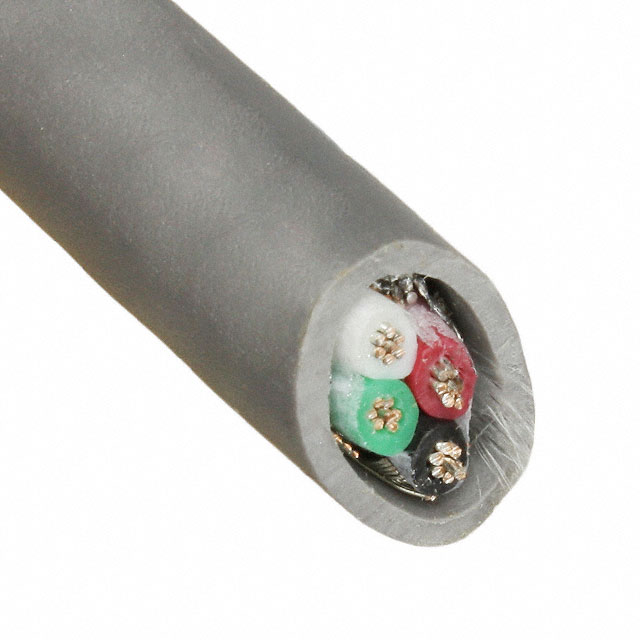

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 4 CONDUCTOR, 24 AWG, 0.23 MM², 500 FT, 152.4 M
| Part | Shield Coverage | Shield Material | Voltage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Jacket Color | Cable Type | Shield Type | Number of Conductors | Features | Conductor Insulation | Wire Gauge | Length | Length | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | 0.813 mm | 0.032 in | Copper Tinned | 0.196 " 4.98 mm | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | Braid Foil | 4 | Drain Wire | Poly-Vinyl Chloride (PVC) | 24 AWG | 152.4 m | 500 ft | UL Style 2464 | 7 | 32 AWG | 80 °C | -20 ░C | ||
ALPHA WIRE | 65 % 100 % | Aluminum Copper Tinned | 300 VDC | 0.813 mm | 0.032 in | Copper Tinned | 0.196 " 4.98 mm | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | Braid Foil | 4 | Drain Wire | Poly-Vinyl Chloride (PVC) | 24 AWG | UL Style 2464 | 7 | 32 AWG | 80 °C | -20 ░C | 100 ft | 30.5 m |
