2T WSTM1206 1W 50ppm 402 mOhm ±1.0%
| Part | Package / Case | Supplier Device Package | Temperature Coefficient | Features | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Tolerance | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Resistance | Number of Terminations [custom] | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 1206 (3216 Metric) | 1206 | 50 ppm/░C | Current Sense High Voltage | 0.033 in | 0.85 mm | 155 C | -55 C | 1 % | 0.067 in | 0.13 " | 3.3 mm | 1.7 mm | 402 mOhms | 2 | 1 W |
Description
AI

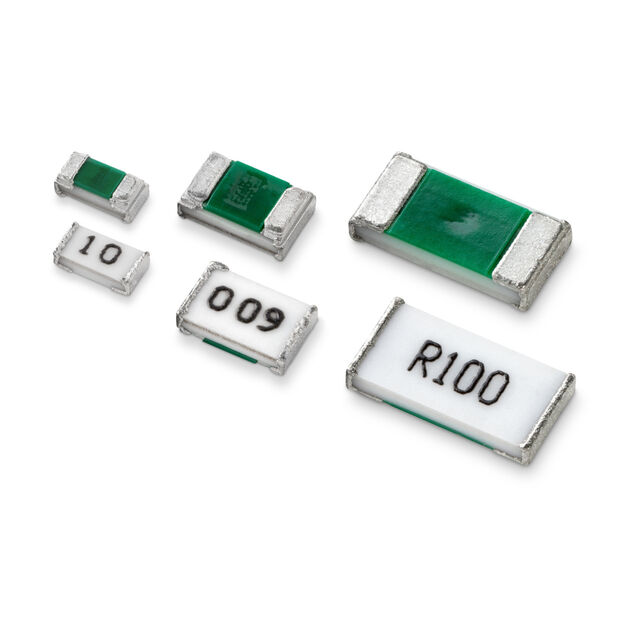

Littelfuse WSTM Series low ohm current sense resistor is designed with long term stability in mind. This series is durable, excels at heat dissipation. The small package is optimal for most applications.
