TPS70933 Series

Catalog

150MA FIXED 3.3V POSITIVE ELECTRODE 30V SOT-23-5 VOLTAGE REGULATORS - LINEAR, LOW DROP OUT (LDO) REGULATORS ROHS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Quiescent (Iq)	Package / Case	Control Features	PSRR [Max]	PSRR [Min]	Mounting Type	Protection Features	Voltage - Output (Min/Fixed)	Number of Regulators	Current - Supply (Max) [Max]	Output Configuration	Supplier Device Package	Output Type	Current - Output	Grade	Voltage Dropout (Max) [Max]	Qualification	Voltage - Input (Max) [Max]	Supplied Contents	Voltage - Output	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Channels per IC	Regulator Type	Utilized IC / Part
Texas Instruments TPS70933QDBVRQ1	125 °C	-40 °C	2.05 µA	SC-74A SOT-753	Enable	80 dB	52 dB	Surface Mount	Over Current Over Temperature Reverse Current Under Voltage Lockout (UVLO)	3.3 V	1	350 µA	Positive	SOT-23-5	1.81 mOhm	150 mA	Automotive	1.54 V	AEC-Q100	30 V
Texas Instruments TPS70933QDRVRQ1	125 °C	-40 °C	2.05 µA		Enable	80 dB	52 dB	Surface Mount	Over Current Over Temperature Reverse Current Under Voltage Lockout (UVLO)	3.3 V	1	350 µA	Positive	6-WSON (2x2)	1.81 mOhm	150 mA	Automotive	1.54 V	AEC-Q100	30 V
Texas Instruments TPS70933DRVRM3	125 ¯C	-40 °C	2.05 µA		Enable	80 dB	52 dB	Surface Mount	Over Current Over Temperature Reverse Polarity Under Voltage Lockout (UVLO)	3.3 V	1	350 µA	Positive	6-WSON (2x2)	1.81 mOhm	150 mA		1.4 V		30 V

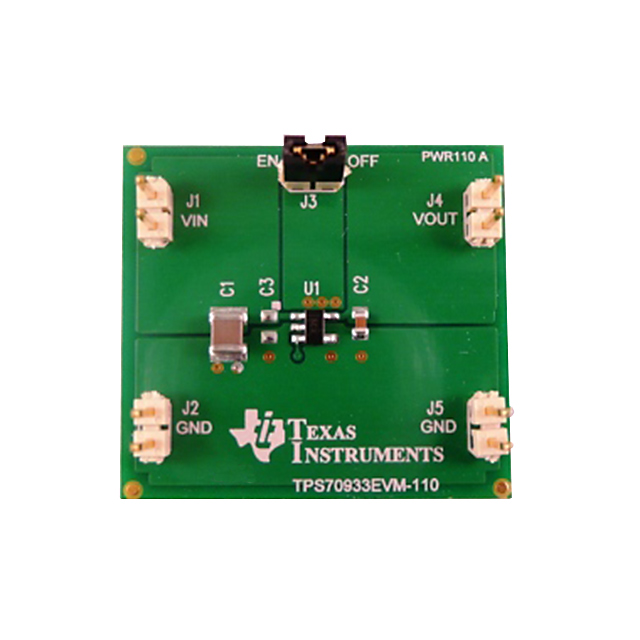

Texas Instruments TPS70933EVM-110																150 mA					Board(s)	3.3 V	Fully Populated	2.7 V	28 V	1 - Single	Positive Fixed	TPS70933
Texas Instruments TPS70933DRVT	125 °C	-40 °C	2.05 µA		Enable	80 dB	52 dB	Surface Mount	Over Current Over Temperature Reverse Current Under Voltage Lockout (UVLO)	3.3 V	1	350 µA	Positive	6-WSON (2x2)	1.81 mOhm	150 mA		1.4 V		30 V

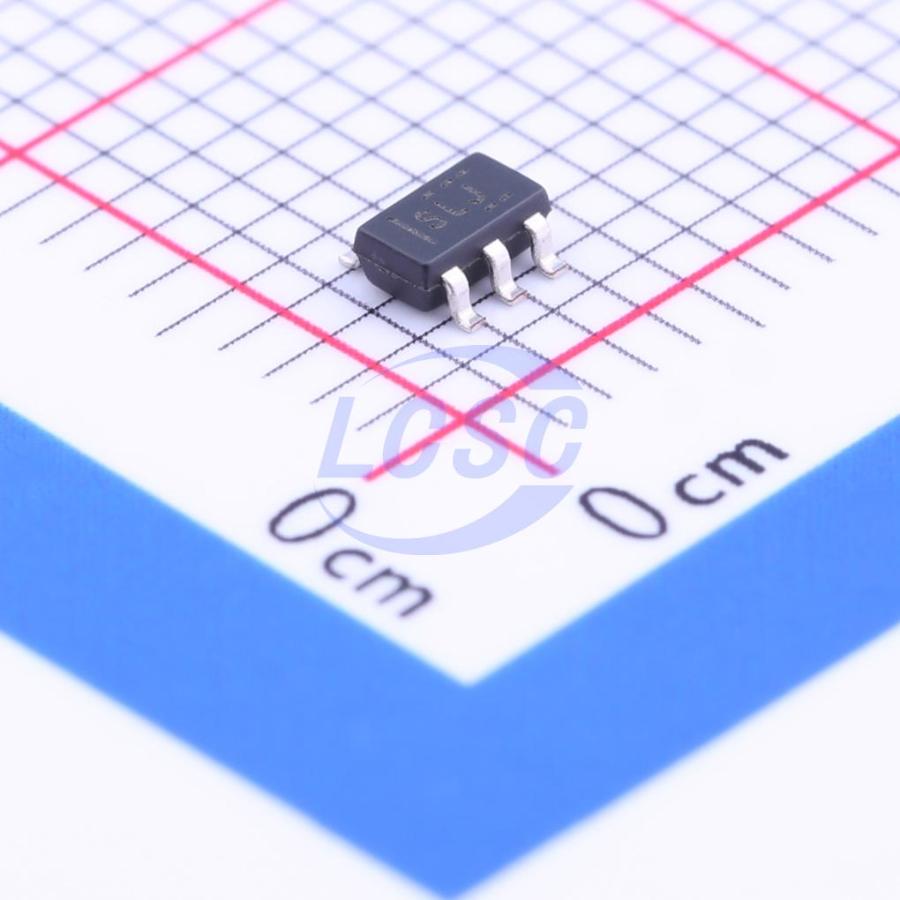

Texas Instruments TPS70933DBVR	125 °C	-40 °C	2.05 µA	SC-74A SOT-753	Enable	80 dB	52 dB	Surface Mount	Over Current Over Temperature Reverse Current Under Voltage Lockout (UVLO)	3.3 V	1	350 µA	Positive	SOT-23-5	1.81 mOhm	150 mA		1.4 V		30 V
