0678-0 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Contact Finish	Termination	Tail Type	Length - Overall [x]	Length - Overall [x]	Contact Finish Thickness	Contact Finish Thickness	Socket Depth [z]	Socket Depth [z]	Flange Diameter [diameter]	Flange Diameter [diameter]	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]

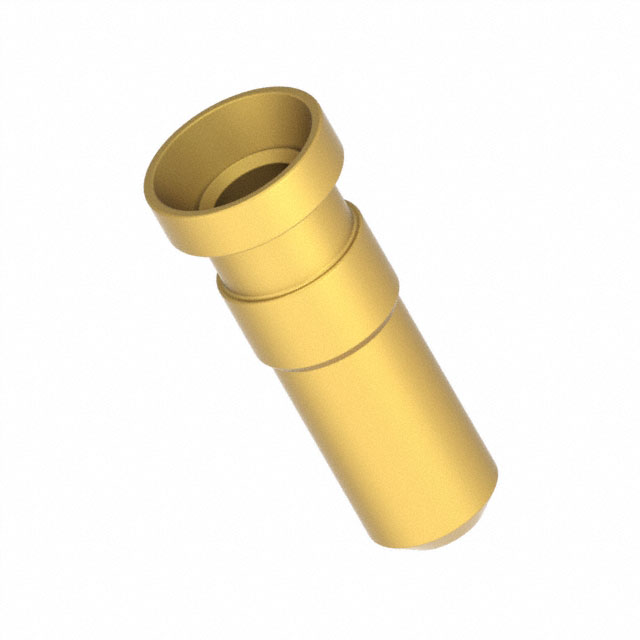

Mill-Max Manufacturing Corp. 0678-0-15-15-32-27-10-0	-55 C	125 °C	Beryllium Copper	Gold	Press-Fit	No Tail	0.18 in	4.57 mm	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.072 "	1.83 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 0678-0-15-01-32-02-10-0	-55 C	125 °C	Beryllium Copper	Tin-Lead	Press-Fit	No Tail	0.18 in	4.57 mm	100 µin	2.54 µm	3.81 mm	0.15 in	0.072 "	1.83 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm

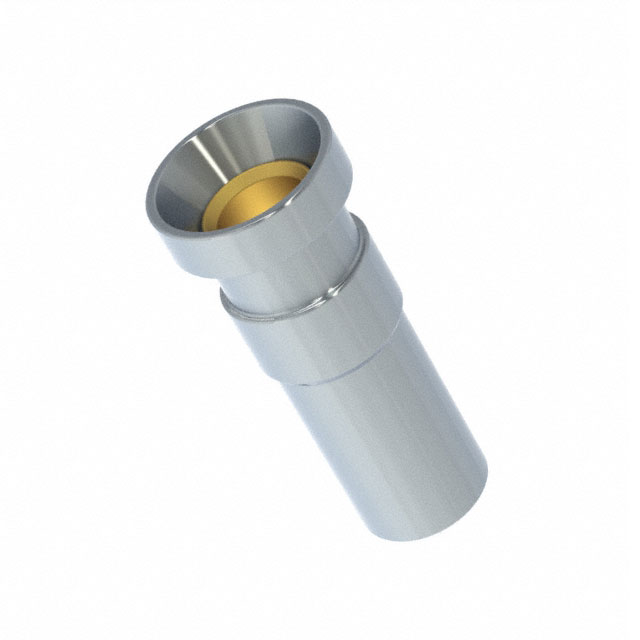

Mill-Max Manufacturing Corp. 0678-0-15-80-32-27-10-0	-55 C	125 °C	Beryllium Copper	Gold	Press-Fit	No Tail	0.18 in	4.57 mm	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.072 "	1.83 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm

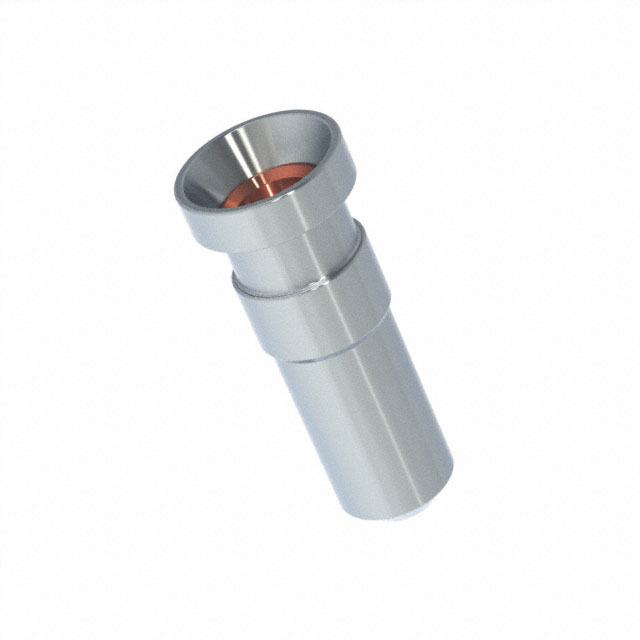

Mill-Max Manufacturing Corp. 0678-0-15-80-32-14-10-0	-55 C	125 °C	Beryllium Copper	Gold	Press-Fit	No Tail	0.18 in	4.57 mm	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.072 "	1.83 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 0678-0-15-01-32-27-10-0	-55 C	125 °C	Beryllium Copper	Gold	Press-Fit	No Tail	0.18 in	4.57 mm	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.072 "	1.83 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 0678-0-15-80-32-84-10-0	-55 C	125 °C	Beryllium Copper	Tin	Press-Fit	No Tail	0.18 in	4.57 mm	100 µin	2.54 µm	3.81 mm	0.15 in	0.072 "	1.83 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
Mill-Max Manufacturing Corp. 0678-0-15-01-32-14-10-0	-55 C	125 °C	Beryllium Copper	Gold	Press-Fit	No Tail	0.18 in	4.57 mm	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.072 "	1.83 mm	1.45 mm	0.057 in	0.64 mm	0.015 "	0.025 in	0.38 mm
