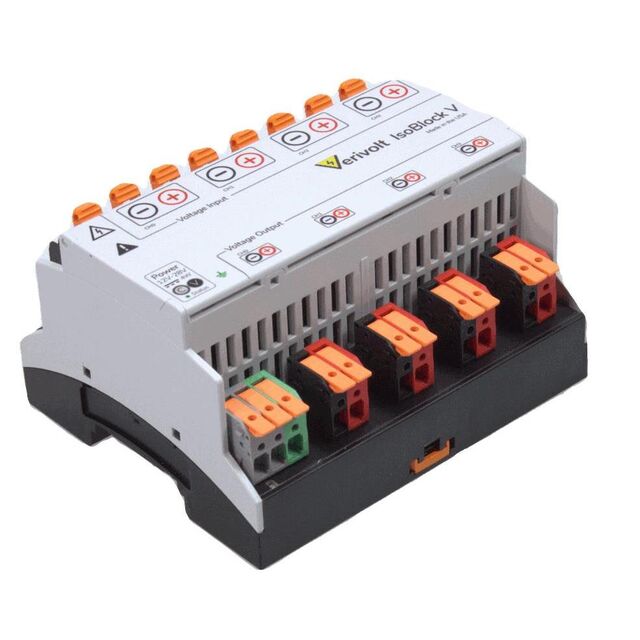

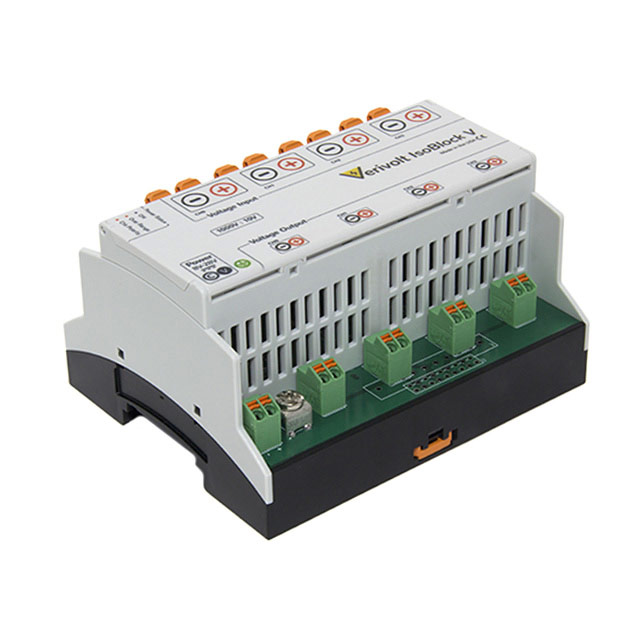

ISOBLOCK V-4C Series

Catalog

TRANSDUCER VOLTAGE 9-28VDC

Part	Type	Isolation	Accuracy	Voltage - Supply [Min]	Voltage - Supply [Max]	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Output	Input Range	Response Time	Input Range [Max]	Input Range [Min]	Output [Min]	Output [Max]
Verivolt LLC ISOBLOCK V-4C (1500V 5V)	Voltage Transducer	1500 V	0.2 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C	5 V	1500 V	2.8 µs
Verivolt LLC ISOBLOCK V-4C (150VAC 7VAC)	Voltage Transducer	1500 V	0.2 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C			2.8 µs	150 VAC	0 VAC	0 VAC	7 VAC
Verivolt LLC ISOBLOCK V-4C (50V 10V0.1%)	Voltage Transducer	1500 V	0.1 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C	10 VDC		2.8 µs	50 V	-50 V
Verivolt LLC ISOBLOCK V-4C (750V 10V)	Voltage Transducer	1500 V	0.2 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C		750 V	2.8 µs			0 VAC	7 VAC
Verivolt LLC ISOBLOCK V-4C (500VAC 7VAC)	Voltage Transducer	1500 V	0.2 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C			2.8 µs	500 VAC	0 VAC	0 VAC	7 VAC
Verivolt LLC ISOBLOCK V-4C (500VAC 7VAC0.1%)	Voltage Transducer	1500 V	0.1 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C			2.8 µs	500 VAC	0 VAC	0 VAC	7 VAC
Verivolt LLC ISOBLOCK V-4C (750V 5V)	Voltage Transducer	1500 V	0.2 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C	5 V	750 V	2.8 µs
Verivolt LLC ISOBLOCK V-4C (500V 10V0.1%)	Voltage Transducer	1500 V	0.1 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C	10 VDC		2.8 µs	500 V	-500 V
Verivolt LLC ISOBLOCK V-4C (300V 10V)	Voltage Transducer	1500 V	0.2 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C	10 VDC	300 V	2.8 µs
Verivolt LLC ISOBLOCK V-4C (500V 5V)	Voltage Transducer	1500 V	0.2 %	9 V	28 V	Spring Terminal	DIN Rail	-25 °C	70 °C	5 V		2.8 µs	500 V	-500 V
