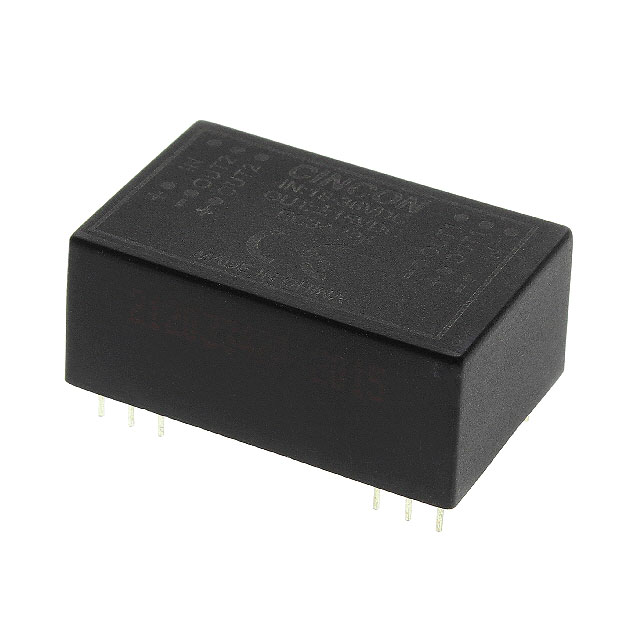

EC3AB25 Series

Catalog

CONVERTER: DC/DC; 3W; UIN: 18÷36VDC; UOUT: 12VDC; 12V; UOUT2: -12VDC

Part	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Voltage - Output 2	Features	Power (Watts)	Package / Case	Efficiency	Voltage - Input (Min) [Min]	Current - Output (Max)	Voltage - Input (Max) [Max]	Voltage - Isolation	Type	Mounting Type	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Approval Agency
Cincon Electronics Co. LTD EC3AB25M	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	12 V	-12 V	SCP	3 W	24-DIP Module 14 Leads	80 %	18 V	125 mA	36 V	500 V	Isolated Module	Through Hole	ITE (Commercial)	71 °C	-25 °C	2
Cincon Electronics Co. LTD EC3AB25HM	1.25 in	31.8 mm	12.7 mm	0.8 "	20.3 mm	0.5 in	12 V	-12 V	SCP	3 W	24-DIP Module 14 Leads	80 %	18 V	125 mA	36 V	1.5 kV	Isolated Module	Through Hole	ITE (Commercial)	71 °C	-25 °C	2	CE cURus
