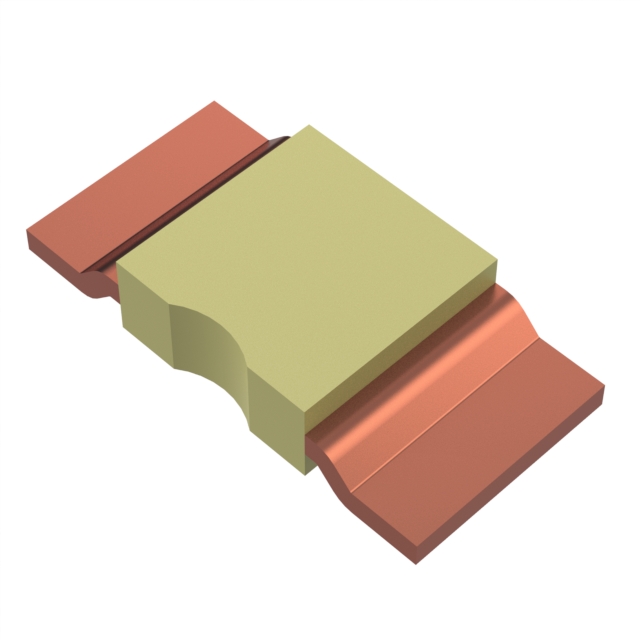

6432 (2512) size, 8W, 0.5mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)
6432 (2512) size, 8W, 0.5mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)
6432 (2512) size, 8W, 0.5mΩ, High Power Type Metal Plate Shunt Resistor (AEC-Q200 Qualified)
| Part | Ratings | Package / Case | Number of Terminations [custom] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Operating Temperature [Min] | Operating Temperature [Max] | Temperature Coefficient [Min] | Temperature Coefficient [Max] | Composition | Resistance | Power (Watts) | Features | Tolerance | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rohm Semiconductor | AEC-Q200 | 2512 (6432 Metric) Nonstandard | 2 | 0.051 in | 1.3 mm | 3.05 mm | 6.35 mm | 0.12 in | 0.25 in | -65 ░C | 175 °C | 0 | 100 ppm/°C | Metal Element | 0.5 mOhms | 8 W | Automotive AEC-Q200 Current Sense | 1 % | 2512 |
