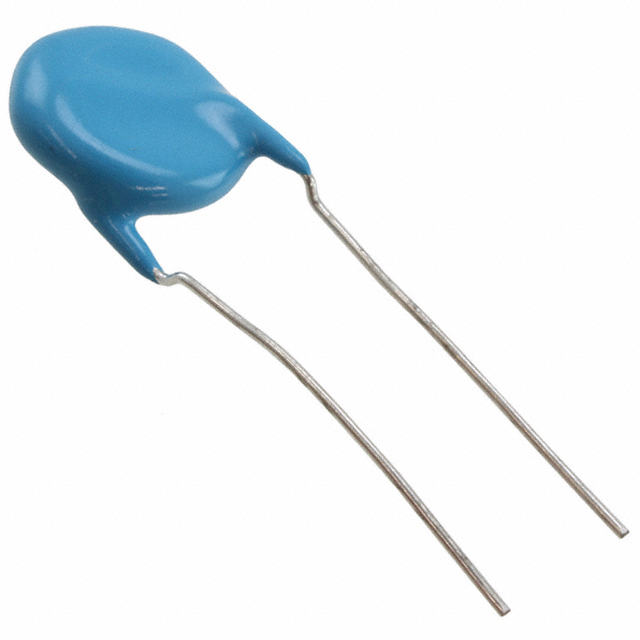

DE21XSA Series

Catalog

CAP CER

Part	Ratings	Mounting Type	Temperature Coefficient	Lead Spacing	Lead Spacing	Tolerance	Package / Case	Lead Style	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Features	Capacitance	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Murata Electronics DE21XSA680KJ3BT02F	X1 Y2	Through Hole	SL	0.295 in	7.5 mm	10 %	Disc Radial	Straight	Safety	11 mm	0.433 in	250 VAC	125 °C	-40 C	Safety Series X1Y2	68 pF	0.315 in	8 mm
Murata Electronics DE21XSA220KA3BT02F	X1 Y2	Through Hole	SL	0.295 in	7.5 mm	10 %	Disc Radial	Straight	Safety			250 VAC	125 °C	-40 C	Safety Series X1Y2	22 pF	0.236 in	6 mm	9 mm	0.354 in
Murata Electronics DE21XSA150KN3AX02F	X1 Y2	Through Hole	SL	0.295 in	7.5 mm	10 %	Disc Radial	Straight	Safety			300 VAC	125 °C	-40 C	Safety Series X1Y2	15 pF	0.236 in	6 mm	9 mm	0.354 in
Murata Electronics DE21XSA220KN2AT01F	X1 Y2	Through Hole	SL	0.197 "	5 mm	10 %	Disc Radial	Straight	Safety			250 VAC	125 °C	-40 C	Safety Series X1Y2	22 pF	0.236 in	6 mm	9 mm	0.354 in
Murata Electronics DE21XSA330KA3BT02F	X1 Y2	Through Hole	SL	0.295 in	7.5 mm	10 %	Disc Radial	Straight	Safety			250 VAC	125 °C	-40 C	Safety Series X1Y2	33 pF	0.276 in	7 mm	10 mm	0.394 in
Murata Electronics DE21XSA220KN3AY02F	X1 Y2	Through Hole	SL	0.295 in	7.5 mm	10 %	Disc Radial	Straight	Safety			400 VAC	125 °C	-40 C	Safety Series X1Y2	22 pF	0.236 in	6 mm	9 mm	0.354 in
Murata Electronics DE21XSA330KA3BX02F	X1 Y2	Through Hole	SL	0.295 in	7.5 mm	10 %	Disc Radial	Straight	Safety			300 VAC	125 °C	-40 C	Safety Series X1Y2	33 pF	0.276 in	7 mm	10 mm	0.394 in
Murata Electronics DE21XSA470KA2BT01F	X1 Y2	Through Hole	SL	0.197 "	5 mm	10 %	Disc Radial	Straight	Safety			250 VAC	125 °C	-40 C	Safety Series X1Y2	47 pF	0.276 in	7 mm	10 mm	0.394 in
Murata Electronics DE21XSA220KA3BY02F	X1 Y2	Through Hole	SL	0.295 in	7.5 mm	10 %	Disc Radial	Straight	Safety			400 VAC	125 °C	-40 C	Safety Series X1Y2	22 pF	0.236 in	6 mm	9 mm	0.354 in
Murata Electronics DE21XSA150KA2BT01F	X1 Y2	Through Hole	SL	0.197 "	5 mm	10 %	Disc Radial	Straight	Safety			250 VAC	125 °C	-40 C	Safety Series X1Y2	15 pF	0.236 in	6 mm	9 mm	0.354 in
