2254 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

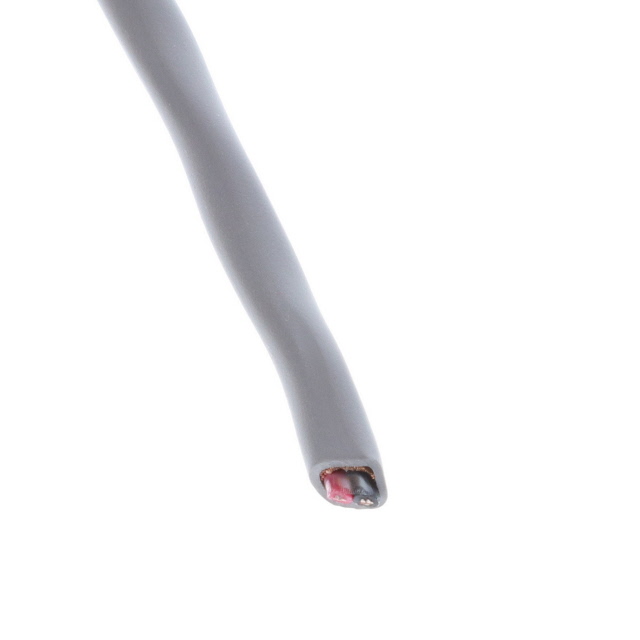

MULTICONDUCTOR CABLE, CONTROL, SHIELDED, 2 CONDUCTOR, 22 AWG, 500 FT, 152.4 M
| Part | Shield Material | Shield Coverage | Conductor Insulation | Number of Conductors | Wire Gauge | Jacket Color | Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Usage | Shield Type | Cable Type | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Bare | 95 % | Poly-Vinyl Chloride (PVC) | 2 | 22 AWG | Slate | 300 VDC | 80 °C | -20 ░C | Communication Control | Spiral | Multi-Conductor | Copper Tinned | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft | 30 AWG | 7 |
ALPHA WIRE | Copper Bare | 95 % | Poly-Vinyl Chloride (PVC) | 2 | 22 AWG | Slate | 300 VDC | 80 °C | -20 ░C | Communication Control | Spiral | Multi-Conductor | Copper Tinned | 0.02 " | 0.508 mm | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft | 30 AWG | 7 |
