MPQ9842 Series
Manufacturer: Monolithic Power Systems Inc.
Beta
⌘K
EVALUATION BOARD, SYNC BUCK CONVERTER ROHS COMPLIANT: YES
| Part | Board Type | Supplied Contents | Outputs and Type | Outputs and Type | Utilized IC / Part | Regulator Topology | Voltage - Output | Main Purpose | Frequency - Switching | Voltage - Input [Max] | Voltage - Input [Min] | Contents | Current - Output | Voltage - Output (Min/Fixed) | Output Configuration | Function | Package / Case | Topology | Number of Outputs | Supplier Device Package | Frequency - Switching [Max] | Frequency - Switching [Min] | Synchronous Rectifier | Voltage - Input (Max) [Max] | Qualification | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Grade |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

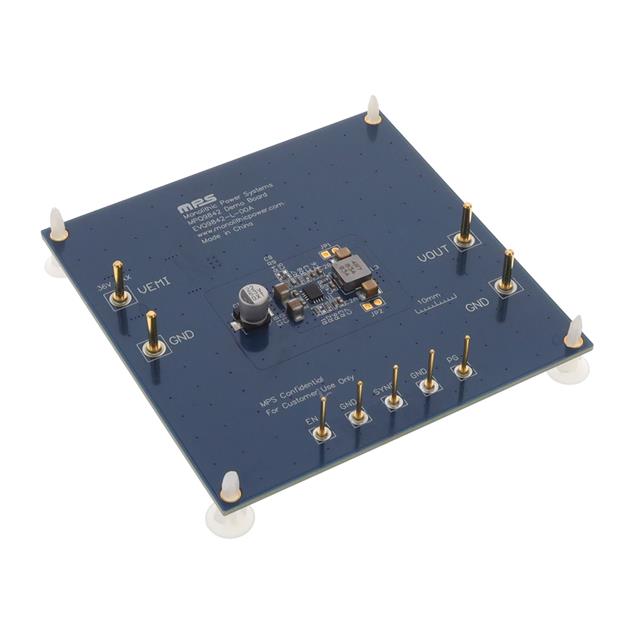

 Monolithic Power Systems Inc. | Fully Populated | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | MP9842 MPQ9842 | Buck | 5 V | DC/DC Step Down | 450 kHz | 36 V | 5 V | Board(s) | 3.5 A | ||||||||||||||||

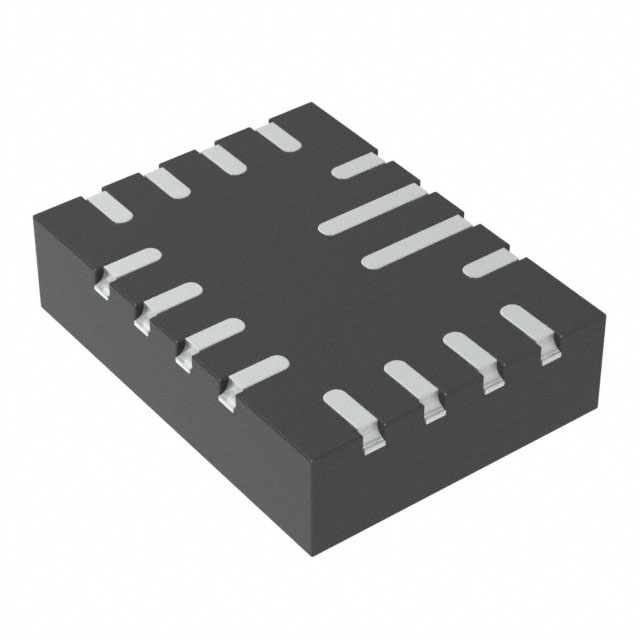

 Monolithic Power Systems Inc. | 2 A | 5 V | Positive | Step-Down | 16-VQFN | Buck | 1 | 16-QFN (3x4) | 2.5 MHz | 350 kHz | 36 V | AEC-Q100 | Surface Mount Wettable Flank | -40 C | 125 °C | Automotive |
