G43B0C-P Series
Manufacturer: ODU
Beta
⌘K

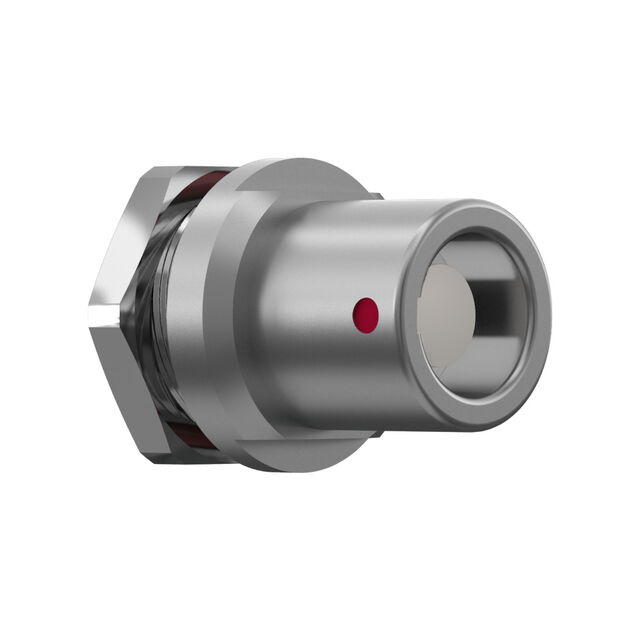

ODU MINI-SNAP RECEPT, SZ 3, STY
| Part | Fastening Type | Contact Finish - Mating | Connector Type | Ingress Protection | Shell Finish | Contact Material | Shell Material | Features | Shielding | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Orientation | Mounting Feature | Primary Material | Applications | Voltage Rating | Current Rating (Amps) | Shell Size - Insert | Number of Positions | Color | Insert Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | Gold | Receptacle Female Sockets | IP68 - Dust Tight Waterproof | Chrome over Nickel | Brass | Brass | Ground | Unshielded | Panel Mount | 120 °C | -40 C | 0 | Bulkhead - Rear Side Nut | Metal | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | 7.5 A | 3 TPI | 30 | Silver | Polyetheretherketone (PEEK) | |
Push-Pull | Gold | Receptacle Female Sockets | IP68 - Dust Tight Waterproof | Chrome over Nickel | Brass | Brass | Ground | Unshielded | Panel Mount | 120 °C | -40 C | 0 | Bulkhead - Rear Side Nut | Metal | Industrial Medical Military Testing Equipment & Measurement | 600 V | 18 A | 3 TPI | 4 | Silver | Polyetheretherketone (PEEK) | |
Push-Pull | Gold | Receptacle Female Sockets | IP68 - Dust Tight Waterproof | Chrome over Nickel | Brass | Brass | Ground | Unshielded | Panel Mount | 120 °C | -40 C | 0 | Bulkhead - Rear Side Nut | Metal | Industrial Medical Military Testing Equipment & Measurement | 300 VDC | 7.5 A | 3 TPI | 26 | Silver | Polyetheretherketone (PEEK) |
