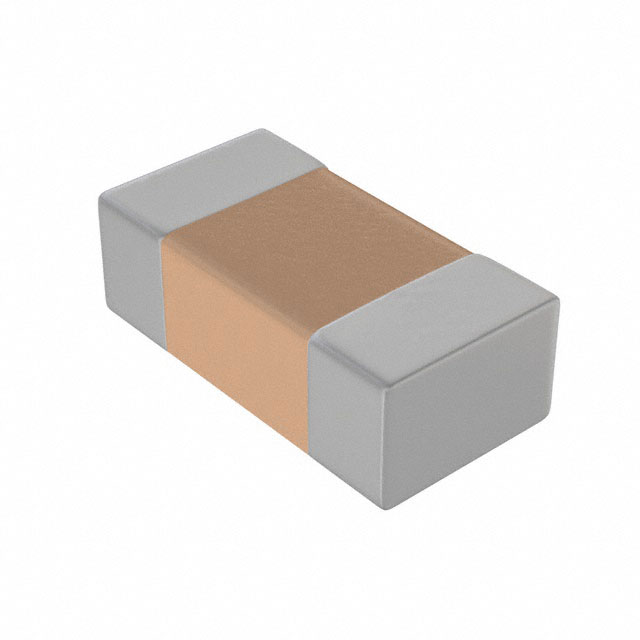

LDECA Series

Manufacturer: KEMET

Catalog

CAP FILM 10000PF 5% 50VDC 1206

Part	Tolerance	Ratings	Package / Case	Features	Applications	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage Rating - DC	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Dielectric Material	Mounting Type	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET LDECA2100JA0N00	5 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	10000 pF
KEMET LDECA1560JA0N00	5 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.0056 µF
KEMET LDECA1330JA0N00	5 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads			50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.0033 µF	1.2 mm	0.047 "
KEMET LDECA2220JA0N00	5 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.022 µF
KEMET LDECA1680JA0N00	5 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	6800 pF
KEMET LDECA1390KA0N00	10 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	3900 pF
KEMET LDECA1120MA0N00	20 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	1200 pF
KEMET LDECA1120JA0N00	5 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	1200 pF
KEMET LDECA1820JA0N00	5 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount
KEMET LDECA2180KA0N00	10 %	AEC-Q200	1206 (3216 Metric)	High Temperature	Automotive	40 V	-55 C	125 °C	Solder Pads	0.043 "	1.1 mm	50 VDC	0.067 in	0.13 "	3.3 mm	1.7 mm	Metallized - Stacked Polyester Polyethylene Naphthalate (PEN)	Surface Mount	0.018 µF
