333-074 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 74 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

...

Part	Termination Rows [custom]	Material - Insulation	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Color	Number of Rows [custom]	Number of Positions	Gender	Card Thickness [Max]	Card Thickness [Min]	Read Out	Card Type	Contact Material	Contact Type	Contact Finish	Pitch	Pitch	Flange Feature [diameter]	Flange Feature [diameter]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions/Bay/Row	Flange Feature	Features
EDAC Inc. 333-074-540-804	2	Polyester Thermoplastic	Wire Wrap	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in	0.156 "	3.96 mm	Through Hole	0.25 Ám	10 Áin	37
EDAC Inc. 333-074-541-207	2	Polyester Thermoplastic	Wire Wrap	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in			Through Hole	0.25 Ám	10 Áin	37	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 333-074-560-802	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in	0.128 "	3.25 mm	Board Edge Straddle Mount	0.25 Ám	10 Áin	37		Card Extender
EDAC Inc. 333-074-544-207	2	Polyester Thermoplastic	Wire Wrap	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in			Through Hole	0.25 Ám	10 Áin	37	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 333-074-560-212	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in	0.128 "	3.25 mm	Board Edge Straddle Mount	0.25 Ám	10 Áin	37	Flush Mount Side Opening Unthreaded	Card Extender
EDAC Inc. 333-074-541-212	2	Polyester Thermoplastic	Wire Wrap	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in	0.128 "	3.25 mm	Through Hole	0.25 Ám	10 Áin	37	Flush Mount Side Opening Unthreaded

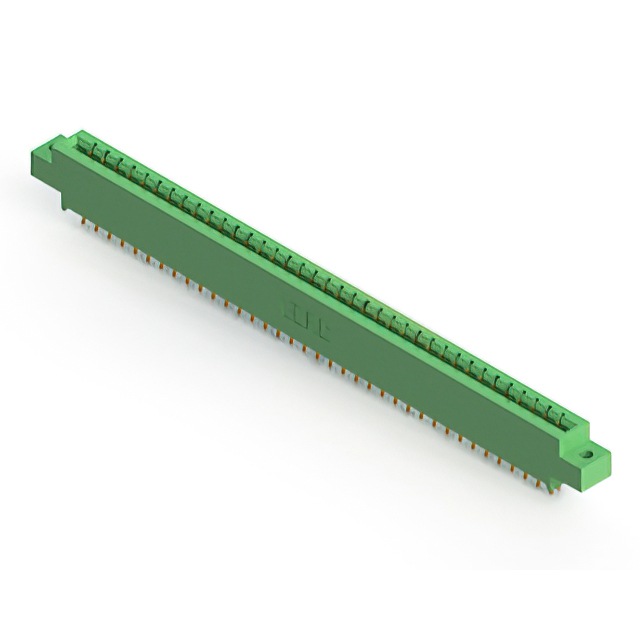

EDAC Inc. 333-074-556-802	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in	0.128 "	3.25 mm	Board Edge Straddle Mount	0.25 Ám	10 Áin	37		Card Extender

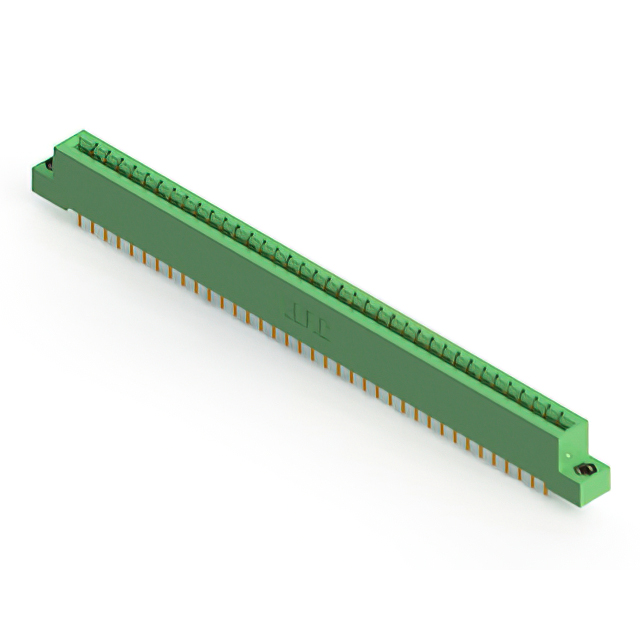

EDAC Inc. 333-074-520-208	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in			Through Hole	0.25 Ám	10 Áin	37	4-40 Flush Mount Threaded Insert Top Opening
EDAC Inc. 333-074-540-212	2	Polyester Thermoplastic	Wire Wrap	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in	0.128 "	3.25 mm	Through Hole	0.25 Ám	10 Áin	37	Flush Mount Side Opening Unthreaded

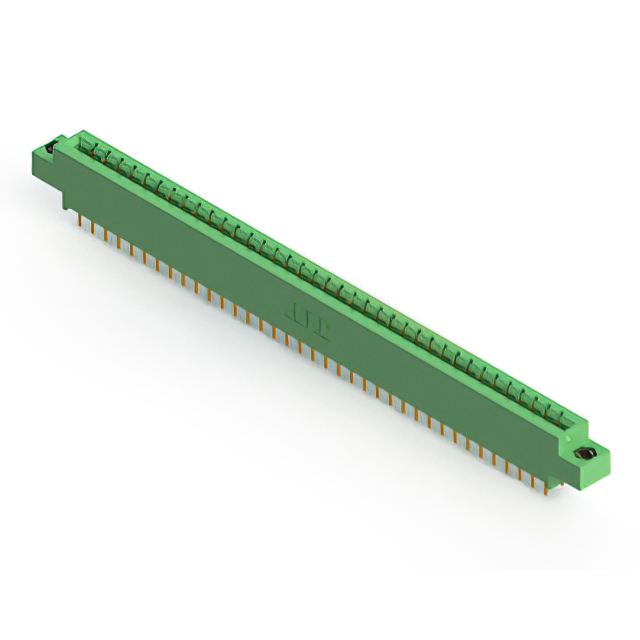

EDAC Inc. 333-074-520-807	2	Polyester Thermoplastic	Solder	-40 C	105 ░C	Green	2	74	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Non Specified - Dual Edge	Copper Alloy	Cantilever	Gold	3.96 mm	0.156 in			Through Hole	0.25 Ám	10 Áin	37	M3 Threaded Insert Top Mount Opening
