430278 Series

Catalog

PELTIER OT20,32,F0,0808,GG,W2.25

Part	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Qmax @ Th	Current - Max [Max]	Features	Voltage - Max [Max]	Number of Stages	Height [z]	Resistance	Operating Temperature

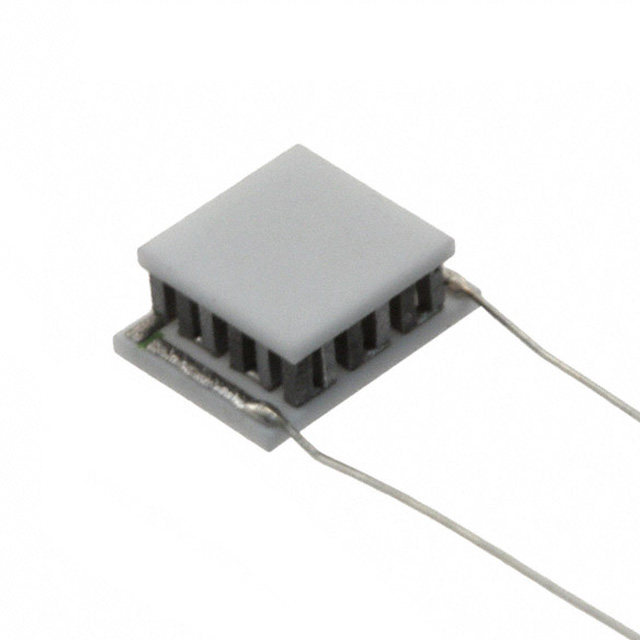

Laird Thermal Systems, Inc. 430278-506	67 °C	0.4 "	8.13 mm	4.4 W	2 A	Lead Wires Non-Sealed	3.7 V	1	2.54 mm	1.67 Ohms	80 °C
Laird Thermal Systems, Inc. 430278-508	67 °C	0.4 "	8.13 mm	4.4 W	2 A	Lead Wires Sealed - Silicone RTV	3.7 V	1	2.18 mm	1.67 Ohms	80 °C
Laird Thermal Systems, Inc. 430278-503	67 °C	0.4 "	8.13 mm	4.4 W	2 A	Lead Wires Non-Sealed	3.7 V	1	2.54 mm	1.67 Ohms	80 °C
