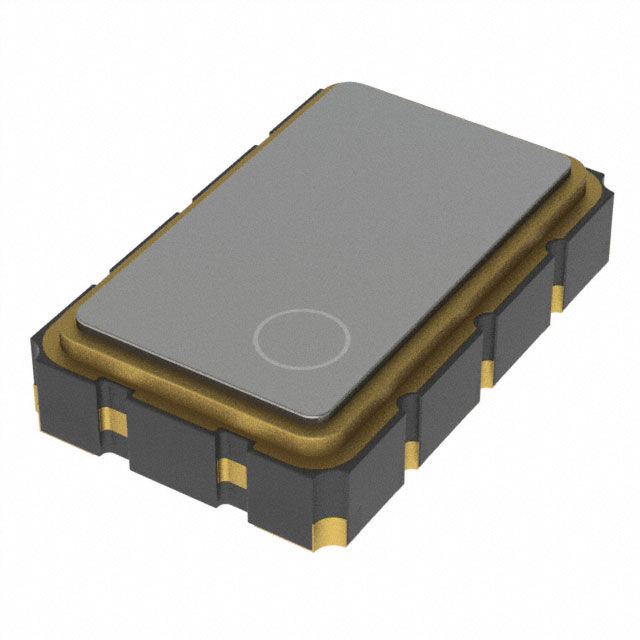

TG5032CGN Series

Manufacturer: EPSON

Catalog

TCXO OSCILLATORS TG5032CGN 30.7200M-CAGHNA0: TCXO MHZ 3.3V +/-0.1PPM-40~85C 1K TR

Part	Type	Supplier Device Package	Supplier Device Package [y]	Supplier Device Package [x]	Mounting Type	Frequency	Output	Base Resonator [custom]	Voltage - Supply	Frequency Stability	Package / Case	Current - Supply (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Function	Operating Temperature [Max]	Operating Temperature [Min]
EPSON TG5032CGN 30.7200M-CAGHNA0	TCXO	10-SMD	3.2	5	Surface Mount	30.72 MHz	CMOS	Crystal	3.3 V	100 ppb	10-SMD No Lead	6 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 20.0000M-CBGHNAB	TCXO	10-SMD	3.2	5	Surface Mount	20 MHz	CMOS	Crystal	3.3 V	280 ppb	10-SMD No Lead	5 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 25.0000M-CAGHNAB	TCXO	10-SMD	3.2	5	Surface Mount	25 MHz	CMOS	Crystal	3.3 V	100 ppb	10-SMD No Lead	5 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 25.0000M-CAGHDAB	VCTCXO	10-SMD	3.2	5	Surface Mount	25 MHz	CMOS	Crystal	3.3 V	100 ppb	10-SMD No Lead	5 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 10.0000M-CAGHNA0	TCXO	10-SMD	3.2	5	Surface Mount	10 MHz	CMOS	Crystal	3.3 V	100 ppb	10-SMD No Lead	5 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 12.8000M-CBGHNAB	TCXO	10-SMD	3.2	5	Surface Mount	12.8 MHz	CMOS	Crystal	3.3 V	280 ppb	10-SMD No Lead	5 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 40.0000M-CAGHNAB	TCXO	10-SMD	3.2	5	Surface Mount	40 MHz	CMOS	Crystal	3.3 V	100 ppb	10-SMD No Lead	6 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 40.0000M-CAGHNA0	TCXO	10-SMD	3.2	5	Surface Mount	40 MHz	CMOS	Crystal	3.3 V	100 ppb	10-SMD No Lead	6 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 25.0000M-CAGHGA3	TCXO	10-SMD	3.2	5	Surface Mount	25 MHz	CMOS	Crystal	3.3 V	100 ppb	10-SMD No Lead	5 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
EPSON TG5032CGN 25.0000M-CAGHNA3	TCXO	10-SMD	3.2	5	Surface Mount	25 MHz	CMOS	Crystal	3.3 V	100 ppb	10-SMD No Lead	5 mA	3.2 mm	0.126 in	5 mm	0.197 in	0.065 "	1.65 mm	Enable/Disable	85 °C	-40 C
