TLV713P-Q1 Series

Automotive 150-mA, low-dropout voltage regulator with enable

Catalog

Automotive 150-mA, low-dropout voltage regulator with enable

Part	Current - Output	Voltage Dropout (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Current - Quiescent (Iq)	Output Type	Protection Features	PSRR [Max]	PSRR [Min]	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Supplier Device Package	Control Features	Output Configuration	Number of Regulators	Mounting Type	Package / Case	Voltage - Input [Min]	Voltage - Input [Max]	Utilized IC / Part	Supplied Contents	Board Type	Voltage - Output	Regulator Type	Channels per IC	Grade	Qualification
Texas Instruments TLV71333PDBVR	150 mA	0.54 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	3.3 V	5.5 V	SOT-23-5	Enable	Positive	1	Surface Mount	SC-74A SOT-753
Texas Instruments TLV71312PDBVT	150 mA	1.02 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	1.2 V	5.5 V	SOT-23-5	Enable	Positive	1	Surface Mount	SC-74A SOT-753
Texas Instruments TLV71310PDBVT	150 mA	1.02 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	1 V	5.5 V	SOT-23-5	Enable	Positive	1	Surface Mount	SC-74A SOT-753
Texas Instruments TLV71318PDBVT	150 mA	0.7 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	1.8 V	5.5 V	SOT-23-5	Enable	Positive	1	Surface Mount	SC-74A SOT-753

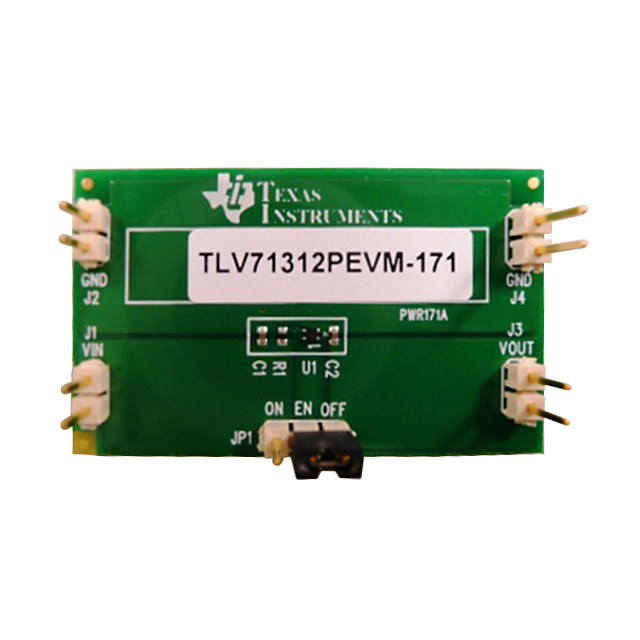

Texas Instruments TLV71312PEVM-171	150 mA																	1.4 V	5.5 V	TLV71312P	Board(s)	Fully Populated	1.2 V	Positive Fixed	1 - Single
Texas Instruments TLV71310PQDBVRQ1	150 mA	1.02 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	1 V	5.5 V	SOT-23-5	Enable	Positive	1	Surface Mount	SC-74A SOT-753									Automotive	AEC-Q100
Texas Instruments TLV71333PDBVT	150 mA	0.54 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	3.3 V	5.5 V	SOT-23-5	Enable	Positive	1	Surface Mount	SC-74A SOT-753
Texas Instruments TLV71310PDQNR	150 mA	1.02 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	1 V	5.5 V	4-X2SON (1x1)	Enable	Positive	1	Surface Mount	4-XDFN Exposed Pad
Texas Instruments TLV71312PQDBVRQ1	150 mA	1.02 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	1.2 V	5.5 V	SOT-23-5	Enable	Positive	1	Surface Mount	SC-74A SOT-753									Automotive	AEC-Q100
Texas Instruments TLV71312PDQNR	150 mA	1.02 V	-40 °C	125 ¯C	75 µA	1.81 mOhm	Over Current Over Temperature Reverse Polarity Short Circuit Under Voltage Lockout (UVLO)	70 dB	55 dB	1.2 V	5.5 V	4-X2SON (1x1)	Enable	Positive	1	Surface Mount	4-XDFN Exposed Pad

Catalog

Automotive 150-mA, low-dropout voltage regulator with enable

Key Features

• AEC-Q100 Qualified with the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BInput Voltage Range: 1.4 V to 5.5 VStable Operation With or Without CapacitorsFoldback Overcurrent ProtectionPackage: 5-Pin SOT-23Very Low Dropout: 230 mV at 150 mAAccuracy: 1%Low IQ: 50 µAAvailable in Fixed-Output Voltages:1 V to 3.3 VHigh PSRR: 65 dB at 1 kHzActive Output DischargeAEC-Q100 Qualified with the Following Results:Device Temperature Grade 1: –40°C to 125°C Ambient Operating Temperature RangeDevice HBM ESD Classification Level H2Device CDM ESD Classification Level C4BInput Voltage Range: 1.4 V to 5.5 VStable Operation With or Without CapacitorsFoldback Overcurrent ProtectionPackage: 5-Pin SOT-23Very Low Dropout: 230 mV at 150 mAAccuracy: 1%Low IQ: 50 µAAvailable in Fixed-Output Voltages:1 V to 3.3 VHigh PSRR: 65 dB at 1 kHzActive Output Discharge

Description
