960136 Series
Manufacturer: 3M (TC)
Beta
⌘K

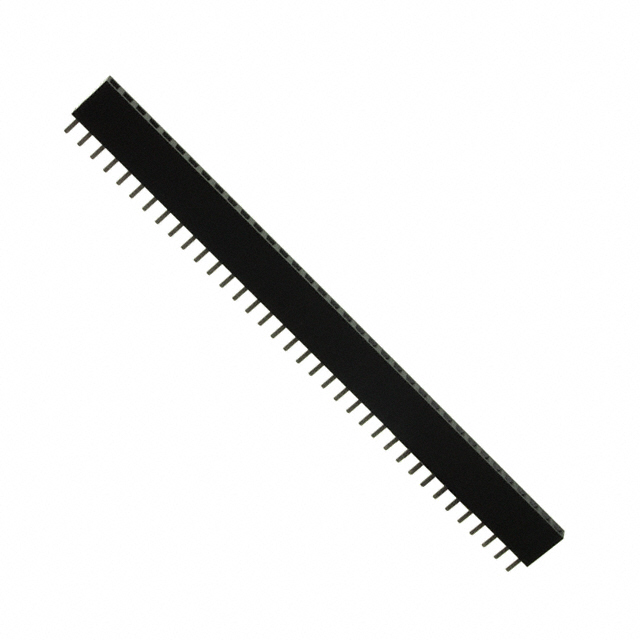

CONN RCPT 36POS 0.1 GOLD PCB
| Part | Contact Shape | Mounting Type | Material Flammability Rating | Termination | Number of Positions Loaded | Fastening Type | Contact Finish - Mating | Number of Rows | Insulation Height | Insulation Height | Contact Finish Thickness - Mating | Insulation Material | Contact Length - Post | Contact Length - Post | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating | Pitch - Mating | Voltage Rating | Contact Finish - Post | Current Rating (Amps) | Number of Positions | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 3M (TC) | Square | Through Hole | UL94 V-0 | Solder | All | Push-Pull | Gold | 1 | 0.28 in | 7.1 mm | Flash | Thermoplastic | 0.118 in | 3 mm | Black | 1.02 Ám | 40 Áin | 0.1 in | 2.54 mm | 1000 VDC | Tin | 2 A | 36 | Female Socket | -25 °C | 105 ░C | Copper Alloy | Receptacle |
