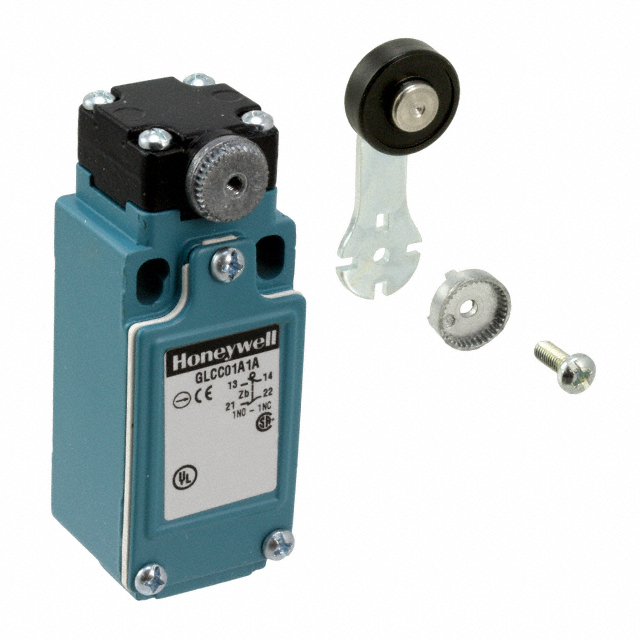

GLCC0 Series
Manufacturer: Honeywell Sensing and Control EMEA
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 120V
| Part | Mechanical Life (Cycles) | Circuit | Operating Position (Angle) | Operating Force | Switch Function | Termination Style | Voltage Rating - DC | Operating Temperature (Min) | Operating Temperature (Max) | Current Rating | Overtravel (Angle) | Ingress Protection Description | Ingress Protection IP Rating | Pretravel (Angle) | Actuator Type | Voltage Rating - AC | Differential Travel (Angle) | Mounting Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Control EMEA | 10000000 Cycles | SPDT | 26 ° | 12 gfm | On-Mom | Screw Terminal | 125 V | -40 °C | 85 °C | 6 A 550 mA | 49 ° | Dust Tight Waterproof | IP67 | 26 ° | Roller Side Rotary | 120 V | 12 ° | Chassis Mount | Nylon Roller |
