LM3447 Series
Manufacturer: Texas Instruments
Beta
⌘K
EVAL MODULE/BOARD FOR LM3447
| Part | Voltage - Output [Min] | Voltage - Output [Max] | Supplied Contents | Current - Output / Channel | Features | Utilized IC / Part | Outputs and Type | Voltage - Input [Min] | Voltage - Input [Max] | Outputs and Type | Voltage - Output | Internal Switch(s) | Type | Applications | Package / Case [custom] | Package / Case [custom] | Package / Case | Number of Outputs | Supplier Device Package | Voltage - Supply (Max) [Max] | Dimming | Mounting Type | Topology | Voltage - Supply (Min) [Min] | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

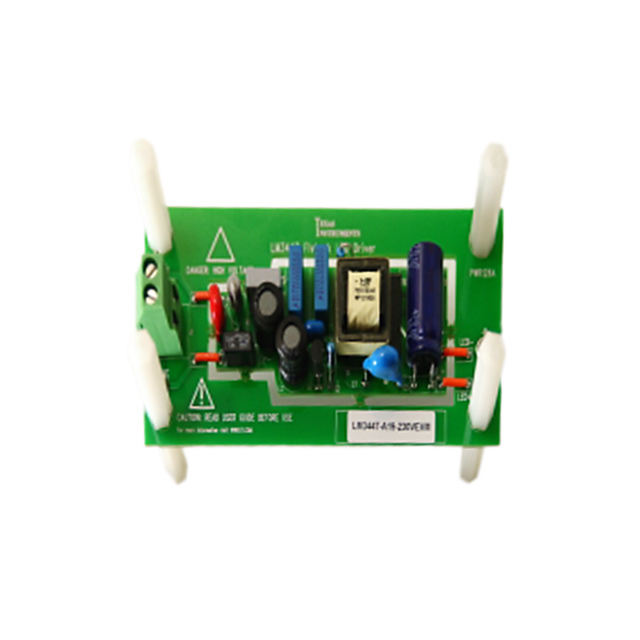

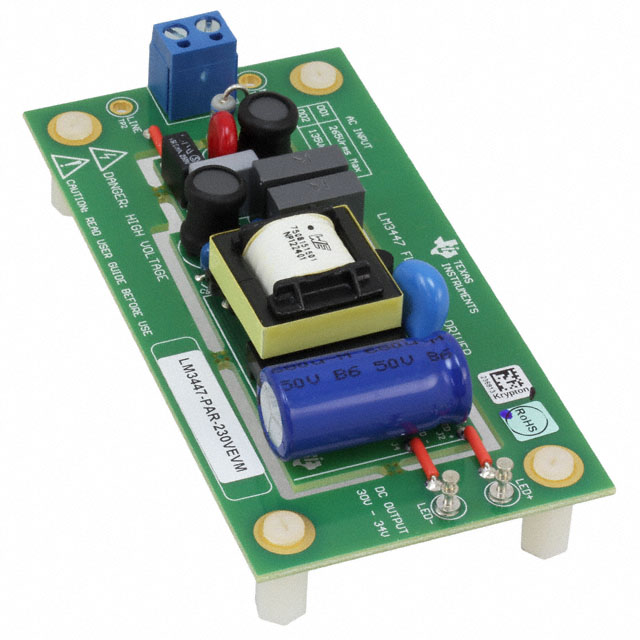

 Texas Instruments | 30 V | 34 V | Board(s) | 500 mA | Dimmable | LM3447 | 1 Isolated Output | 180 VAC | 265 VAC | |||||||||||||||||
 Texas Instruments | Board(s) | 275 mA | Dimmable | LM3447 | Isolated | 190 VAC | 265 VAC | 1 | 30 VDC | |||||||||||||||||

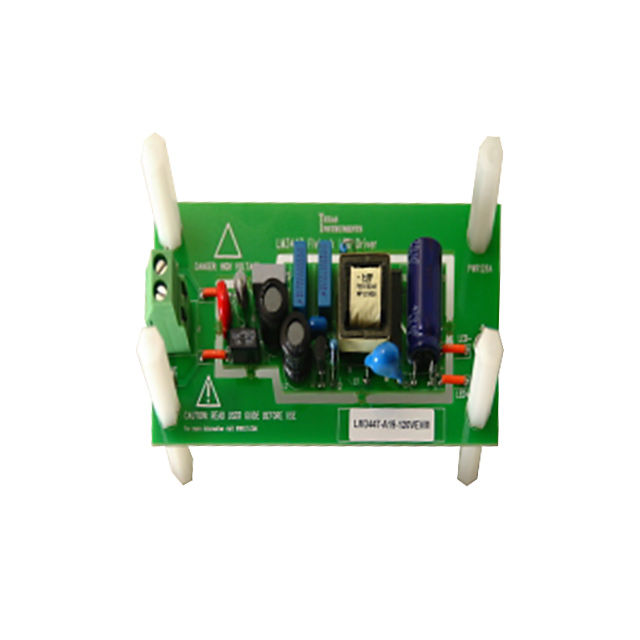

 Texas Instruments | Board(s) | 275 mA | Dimmable | LM3447 | Isolated | 90 VAC | 135 VAC | 1 | 30 VDC | |||||||||||||||||
 Texas Instruments | 19 V | AC DC Offline Switcher | Lighting | 0.173 " | 4.4 mm | 14-TSSOP | 1 | 14-TSSOP | 17.5 V | TRIAC | Surface Mount | Flyback | 7.5 V | -40 °C | 125 ¯C | |||||||||||
Texas Instruments | 19 V | AC DC Offline Switcher | Lighting | 0.173 " | 4.4 mm | 14-TSSOP | 1 | 14-TSSOP | 17.5 V | TRIAC | Surface Mount | Flyback | 7.5 V | -40 °C | 125 ¯C |
