147381 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER SMD 20POS 1.27MM

Part	Contact Length - Mating	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Applications	Insulation Color	Current Rating (Amps)	Insulation Material	Features	Number of Positions Loaded	Contact Shape	Insulation Height	Insulation Height	Shrouding	Termination	Material Flammability Rating	Number of Rows	Number of Positions	Mounting Type	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Type	Contact Finish - Mating	Mated Stacking Heights	Fastening Type
TE Connectivity Raychem Cable Protection 5-147381-2	3.05 mm	0.12 in	0.05 in	1.27 mm	Tin	0.05 in	1.27 mm	Automotive General Purpose Medical Military Telecommunications	Black	500 mA	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	All	Circular	0.226 in	5.74 mm	Shrouded - 4 Wall	Solder	UL94 V-0	2	20	Surface Mount	Header	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Phosphor Bronze	-65 ░C	105 ░C	Male Pin	Gold	6.35 mm	Push-Pull

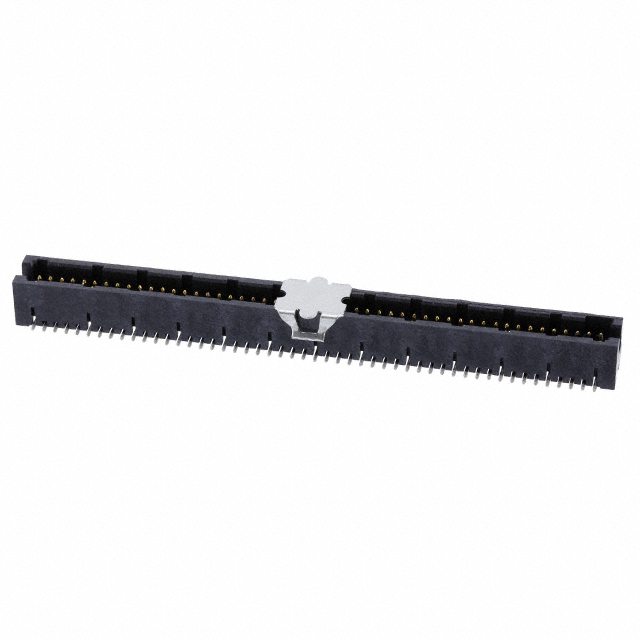

TE Connectivity Raychem Cable Protection 5-147381-9	3.05 mm	0.12 in	0.05 in	1.27 mm	Tin	0.05 in	1.27 mm	Automotive General Purpose Medical Military Telecommunications	Black	500 mA	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	All	Circular	0.226 in	5.74 mm	Shrouded - 4 Wall	Solder	UL94 V-0	2	100	Surface Mount	Header	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Phosphor Bronze	-65 ░C	105 ░C	Male Pin	Gold	6.35 mm	Push-Pull
TE Connectivity Raychem Cable Protection 5-147381-6	3.05 mm	0.12 in	0.05 in	1.27 mm	Tin	0.05 in	1.27 mm	Automotive General Purpose Medical Military Telecommunications	Black	500 mA	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	All	Circular	0.226 in	5.74 mm	Shrouded - 4 Wall	Solder	UL94 V-0	2	60	Surface Mount	Header	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Phosphor Bronze	-65 ░C	105 ░C	Male Pin	Gold	6.35 mm	Push-Pull
TE Connectivity Raychem Cable Protection 147381-2	3.05 mm	0.12 in	0.05 in	1.27 mm	Tin-Lead	0.05 in	1.27 mm	Automotive General Purpose Medical Military Telecommunications	Black	500 mA	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	All	Circular	0.226 in	5.74 mm	Shrouded - 4 Wall	Solder	UL94 V-0	2	20	Surface Mount	Header	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Phosphor Bronze	-65 ░C	105 ░C	Male Pin	Gold	6.35 mm	Push-Pull

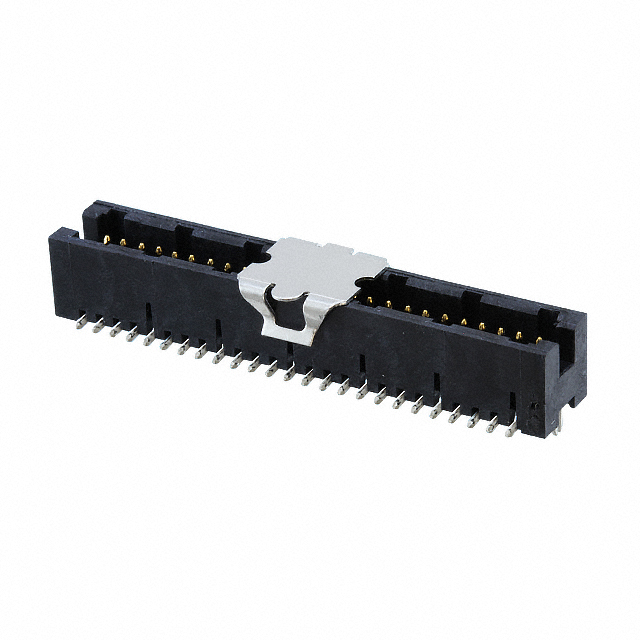

TE Connectivity Raychem Cable Protection 5-147381-5	3.05 mm	0.12 in	0.05 in	1.27 mm	Tin	0.05 in	1.27 mm	Automotive General Purpose Medical Military Telecommunications	Black	500 mA	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	All	Circular	0.226 in	5.74 mm	Shrouded - 4 Wall	Solder	UL94 V-0	2	50	Surface Mount	Header	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Phosphor Bronze	-65 ░C	105 ░C	Male Pin	Gold	6.35 mm	Push-Pull
TE Connectivity Raychem Cable Protection 5-147381-3	3.05 mm	0.12 in	0.05 in	1.27 mm	Tin	0.05 in	1.27 mm	Automotive General Purpose Medical Military Telecommunications	Black	500 mA	Liquid Crystal Polymer (LCP)	Board Lock Pick and Place	All	Circular	0.226 in	5.74 mm	Shrouded - 4 Wall	Solder	UL94 V-0	2	30	Surface Mount	Header	30 Áin	0.76 Ám	150 Áin	3.81 Ám	Phosphor Bronze	-65 ░C	105 ░C	Male Pin	Gold	6.35 mm	Push-Pull
