69133 Series

Catalog

CONN HEADER VERT 66POS 2.54MM

Part	Connector Type	Fastening Type	Insulation Height	Insulation Height	Contact Material	Contact Length - Mating [x]	Contact Length - Mating	Contact Shape	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Contact Length - Post [x]	Contact Length - Post [x]	Insulation Color	Number of Positions Loaded	Number of Rows	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Material Flammability Rating	Mounting Type	Shrouding	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Overall Contact Length	Overall Contact Length	Number of Positions	Contact Finish - Mating	Number of Positions

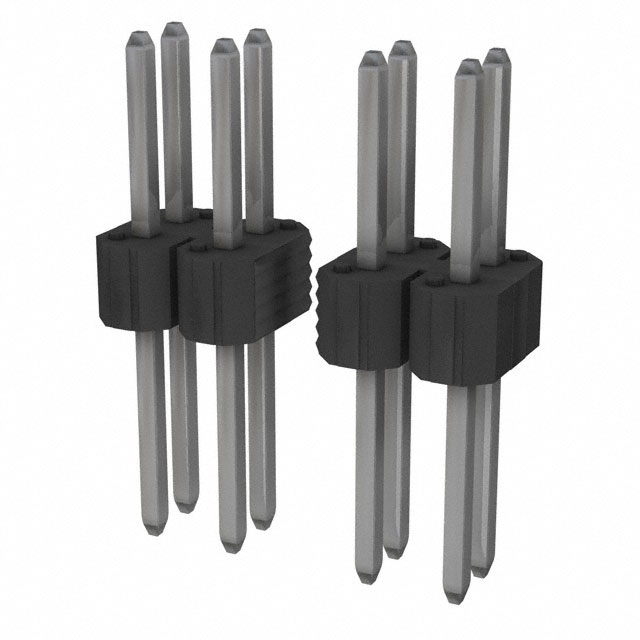

Amphenol ICC (FCI) 69133-466HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	2.54 çm	100 çin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C	Tin	0.1 in	2.54 mm	0.615 in	15.62 mm	66

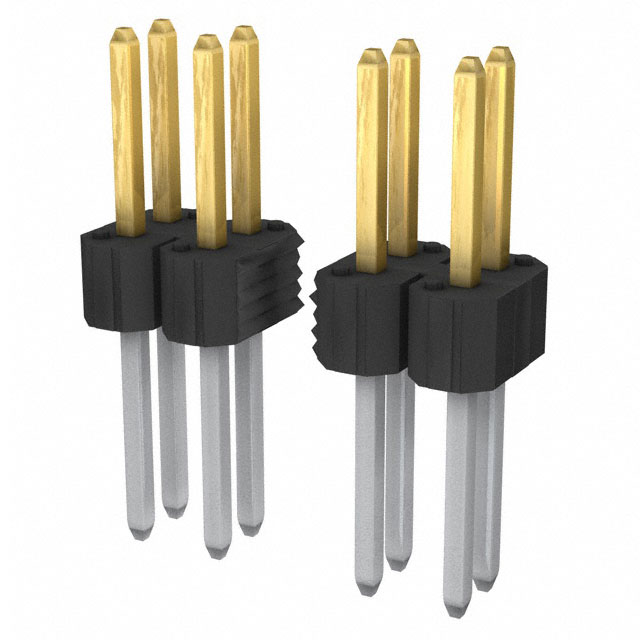

Amphenol ICC (FCI) 69133-144HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	0.76 Ám	30 Áin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C		0.1 in	2.54 mm	0.615 in	15.62 mm	44	Gold or Gold GXT™
Amphenol ICC (FCI) 69133-440HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	2.54 çm	100 çin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C	Tin	0.1 in	2.54 mm	0.615 in	15.62 mm	40
Amphenol ICC (FCI) 69133-250HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	0.38 µm	15 µin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C		0.1 in	2.54 mm	0.615 in	15.62 mm	50	Gold or Gold GXT™
Amphenol ICC (FCI) 69133-142HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	0.76 Ám	30 Áin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C		0.1 in	2.54 mm	0.615 in	15.62 mm	42	Gold or Gold GXT™
Amphenol ICC (FCI) 69133-426HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	2.54 çm	100 çin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C	Tin	0.1 in	2.54 mm	0.615 in	15.62 mm	26
Amphenol ICC (FCI) 69133-116HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	0.76 Ám	30 Áin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C		0.1 in	2.54 mm	0.615 in	15.62 mm		Gold or Gold GXT™	16
Amphenol ICC (FCI) 69133-128	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square		0.76 Ám	30 Áin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded				0.1 in	2.54 mm	0.615 in	15.62 mm	28	Gold or Gold GXT™
Amphenol ICC (FCI) 69133-468HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	2.54 çm	100 çin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C	Tin	0.1 in	2.54 mm	0.615 in	15.62 mm	68
Amphenol ICC (FCI) 69133-134HLF	Header	Push-Pull	0.1 in	2.54 mm	Phosphor Bronze	0.23 in	5.84 mm	Square	3 A	0.76 Ám	30 Áin	Solder	0.285 in	7.24 mm	Black	All	2	2.54 mm	0.1 in	Male Pin	UL94 V-0	Through Hole	Unshrouded	-65 ░C	130 °C		0.1 in	2.54 mm	0.615 in	15.62 mm	34	Gold or Gold GXT™
