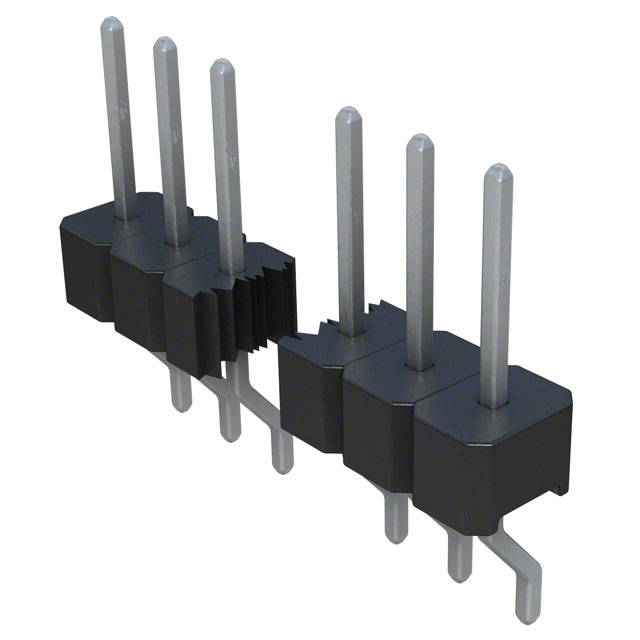

GREC0 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

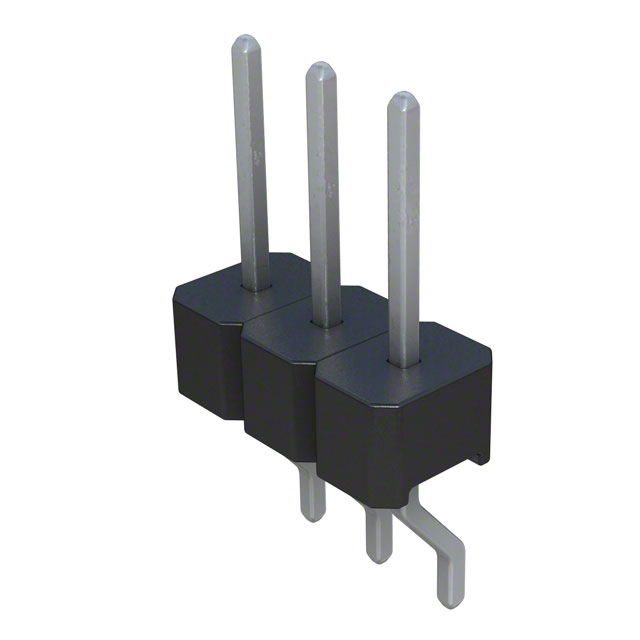

BOARD CONNECTOR, 13 CONTACT(S), 1 ROW(S), MALE, RIGHT ANGLE, 0.1 INCH PITCH, SURFACE MOUNT TERMINAL
| Part | Insulation Color | Shrouding | Number of Positions | Contact Finish - Post | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Style | Termination | Fastening Type | Connector Type | Material Flammability Rating | Number of Rows | Contact Material | Insulation Material | Mounting Type | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Contact Length - Mating [x] | Contact Length - Mating | Insulation Height | Insulation Height | Contact Type | Contact Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Black | Unshrouded | 13 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
Sullins Connector Solutions | Black | Unshrouded | 12 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
Sullins Connector Solutions | Black | Unshrouded | 24 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
Sullins Connector Solutions | Black | Unshrouded | 27 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
Sullins Connector Solutions | Black | Unshrouded | 23 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
Sullins Connector Solutions | Black | Unshrouded | 29 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
Sullins Connector Solutions | Black | Unshrouded | 28 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
Sullins Connector Solutions | Black | Unshrouded | 21 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
Sullins Connector Solutions | Black | Unshrouded | 30 | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
 Sullins Connector Solutions | Black | Unshrouded | Tin | 0.1 in | 2.54 mm | All | Board to Board Cable | Solder | Push-Pull | Header | UL94 V-0 | 1 | Brass | Nylon 9T Polyamide (PA9T) | Surface Mount Right Angle | 3 A | -40 °C | 105 ░C | 0.23 in | 5.84 mm | 3.5 mm | 0.138 in | Male Pin | Square |
