8831-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

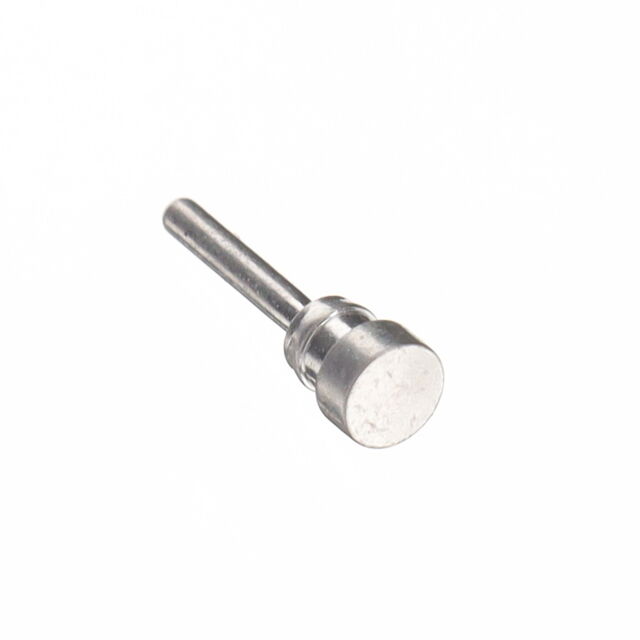

CONN PC PIN CIRC 0.025DIA
| Part | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Terminal Type | Mounting Type | Insulation | Termination | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Terminal Style | Contact Finish Thickness | Contact Finish Thickness | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.64 mm | 0.025 in | 0.072 " | 1.83 mm | 1.45 mm | 0.057 in | 6.15 mm | 0.242 in | PC Pin | Through Hole | Non-Insulated | Press-Fit | 0.212 in | 5.38 mm | Brass Alloy | Single End | |||
 Mill-Max Manufacturing Corp. | 0.64 mm | 0.025 in | 0.072 " | 1.83 mm | 1.45 mm | 0.057 in | 6.15 mm | 0.242 in | PC Pin | Through Hole | Non-Insulated | Press-Fit | 0.212 in | 5.39 mm | Brass Alloy | Single End | 200 Áin | 5.08 Ám | Tin |
 Mill-Max Manufacturing Corp. | 0.64 mm | 0.025 in | 0.072 " | 1.83 mm | 1.45 mm | 0.057 in | 6.15 mm | 0.242 in | PC Pin | Through Hole | Non-Insulated | Press-Fit | 0.212 in | 5.39 mm | Brass Alloy | Single End | 50 µin | 1.27 µm | Gold |
Mill-Max Manufacturing Corp. | 0.64 mm | 0.025 in | 0.072 " | 1.83 mm | 1.45 mm | 0.057 in | 6.15 mm | 0.242 in | PC Pin | Through Hole | Non-Insulated | Press-Fit | 0.212 in | 5.39 mm | Brass Alloy | Single End | 10 Áin | 0.25 Ám | Gold |
