80126 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

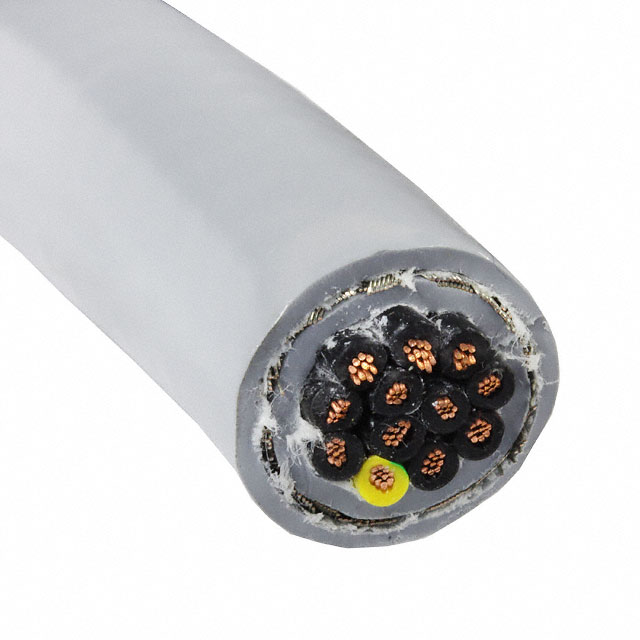

CABLE 12COND 20AWG SHLD
| Part | Shield Coverage | Shield Material | Jacket Color | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Wire Gauge | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Length [x] | Length [x] | Jacket (Insulation) Material | Cable Type | Conductor Material | Voltage | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 85 % | Copper Tinned | Slate | 90 °C | -50 °C | 12 | 20 AWG | Braid | 0.0319 in | 0.81 mm | 0.325 in | 8.26 mm | Polyphenylene Ether (PPE) | 100 ft | 30.5 m | Polyurethane (PU) | Multi-Conductor | Copper Tinned | 600 V | 26 | 34 AWG |
 ALPHA WIRE | 85 % | Copper Tinned | Slate | 90 °C | -50 °C | 12 | 20 AWG | Braid | 0.032 in | 0.813 mm | 0.325 in | 8.26 mm | Polyphenylene Ether Modified (mPPE) | Polyurethane (PU) | Multi-Conductor | Copper Tinned | 600 V | 26 | 34 AWG |
