5533 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

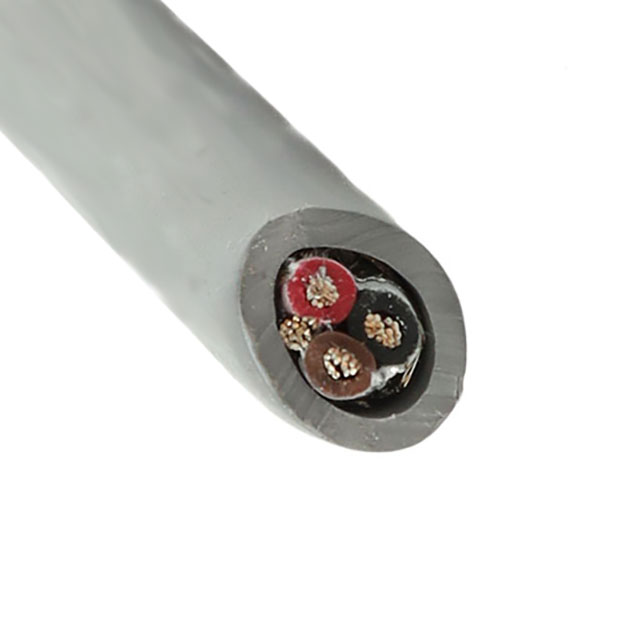

CABLE 3COND 16AWG SLATE SHLD
| Part | Shield Material | Shield Coverage | Conductor Insulation | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Features | Voltage | Shield Type | Conductor Material | Ratings | Operating Temperature [Min] | Operating Temperature [Max] | Number of Conductors | Conductor Strand [custom] | Conductor Strand [diameter] | Length | Length | Wire Gauge | Jacket (Insulation) Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | 1.6 mm | 0.063 in | Drain Wire Rip Cord | 600 V | Foil | Copper Tinned | UL Style 2501 | -30 ░C | 105 ░C | 3 | 19 | 0.0117 in | 152.4 m | 500 ft | 16 AWG | Poly-Vinyl Chloride (PVC) | 10.74 mm | 0.423 in | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | 1.6 mm | 0.063 in | Drain Wire Rip Cord | 600 V | Foil | Copper Tinned | UL Style 2501 | -30 ░C | 105 ░C | 3 | 19 | 0.0117 in | 16 AWG | Poly-Vinyl Chloride (PVC) | 10.74 mm | 0.423 in | ||||
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Slate | Multi-Conductor | 1.6 mm | 0.063 in | Drain Wire Rip Cord | 600 V | Foil | Copper Tinned | UL Style 2501 | -30 ░C | 105 ░C | 3 | 19 | 0.0117 in | 16 AWG | Poly-Vinyl Chloride (PVC) | 10.74 mm | 0.423 in | 100 ft | 30.5 m | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | Black | Multi-Conductor | 1.6 mm | 0.063 in | Drain Wire Rip Cord | 600 V | Foil | Copper Tinned | UL Style 2501 | -30 ░C | 105 ░C | 3 | 19 | 0.0117 in | 304.8 m | 1000 ft | 16 AWG | Poly-Vinyl Chloride (PVC) | 10.74 mm | 0.423 in |
