PBC35 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 35POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Color	Contact Material	Connector Type	Mounting Type	Termination	Contact Finish - Post	Current Rating (Amps)	Material Flammability Rating	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Style	Number of Rows	Contact Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Shape	Overall Contact Length	Overall Contact Length	Pitch - Mating	Pitch - Mating	Shrouding	Fastening Type	Insulation Material	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [custom]	Contact Length - Post [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Overall Contact Length

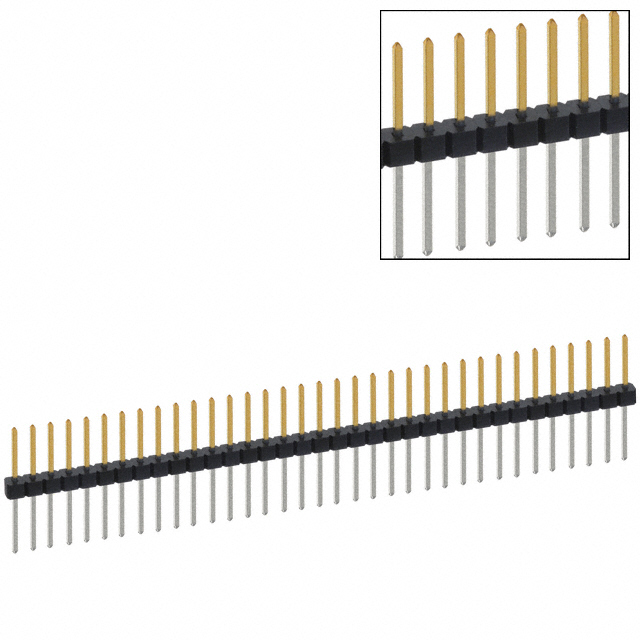

Sullins Connector Solutions PBC35SFBN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Through Hole	Solder	Tin	3 A	UL94 V-0	Gold	5.58 mm	0.22 in	Board to Board Cable	1	Male Pin	35	-65 ░C	125 °C	Square	0.638 in	16.21 mm	0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.1 in	2.54 mm	0.25 µm	10 µin	8.08 mm	0.318 in
Sullins Connector Solutions PBC35SAFN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Through Hole	Solder	Tin	3 A	UL94 V-0	Gold			Board to Board Cable	1	Male Pin	35	-65 ░C	125 °C	Square	0.95 in	24.13 mm	0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.1 in	2.54 mm	0.25 µm	10 µin	5.84 mm	0.23 in	15.75 mm	0.62 "

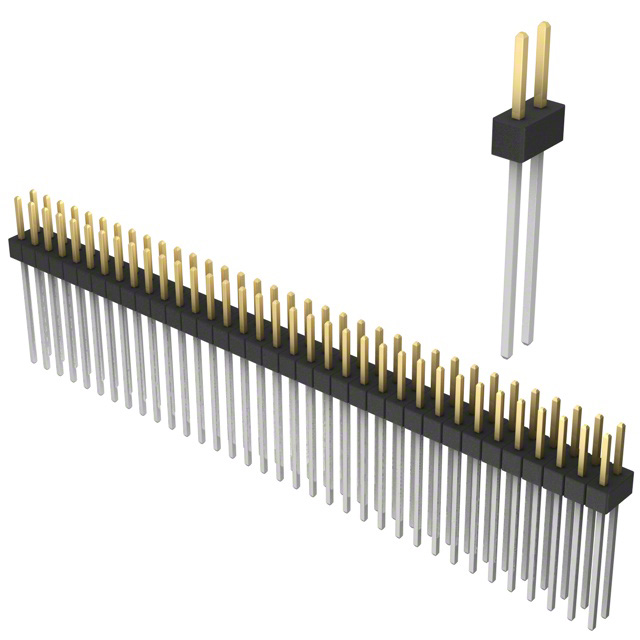

Sullins Connector Solutions PBC35DAFN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Through Hole	Solder	Tin	3 A	UL94 V-0	Gold			Board to Board Cable		Male Pin	70	-65 ░C	125 °C	Square	0.95 in	24.13 mm	0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.1 in	2.54 mm	0.25 µm	10 µin	5.84 mm	0.23 in	15.75 mm	0.62 "	0.1 in	2.54 mm	2

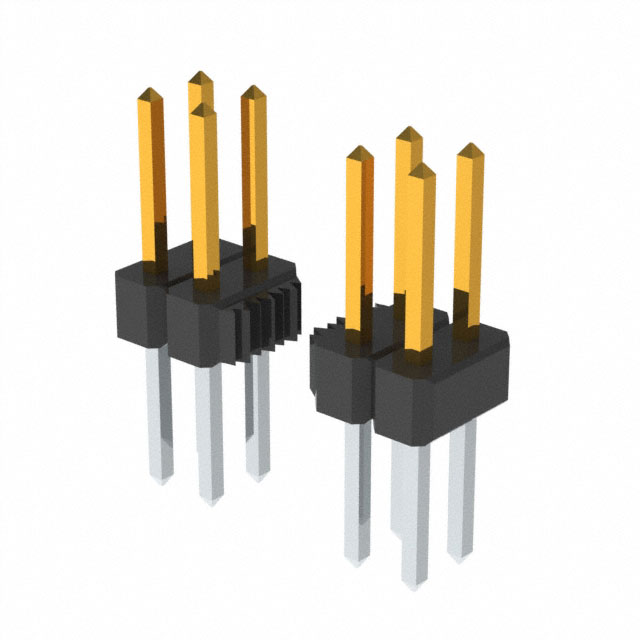

Sullins Connector Solutions PBC35DABN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Through Hole	Solder	Tin	3 A	UL94 V-0	Gold	5.84 mm	0.23 "	Board to Board Cable		Male Pin	70	-65 ░C	125 °C	Square	0.56 in	14.22 mm	0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.1 in	2.54 mm	0.25 µm	10 µin	5.84 mm	0.23 in			0.1 in	2.54 mm	2

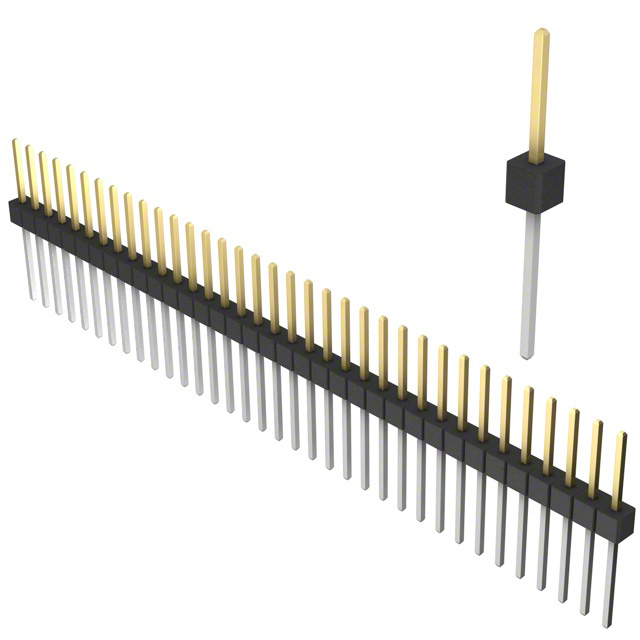

Sullins Connector Solutions PBC35SFDN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Through Hole	Solder	Tin	3 A	UL94 V-0	Gold	10.67 mm	0.42 in	Board to Board Cable	1	Male Pin	35	-65 ░C	125 °C	Square	0.838 in	21.29 mm	0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.1 in	2.54 mm	0.25 µm	10 µin	8.08 mm	0.318 in

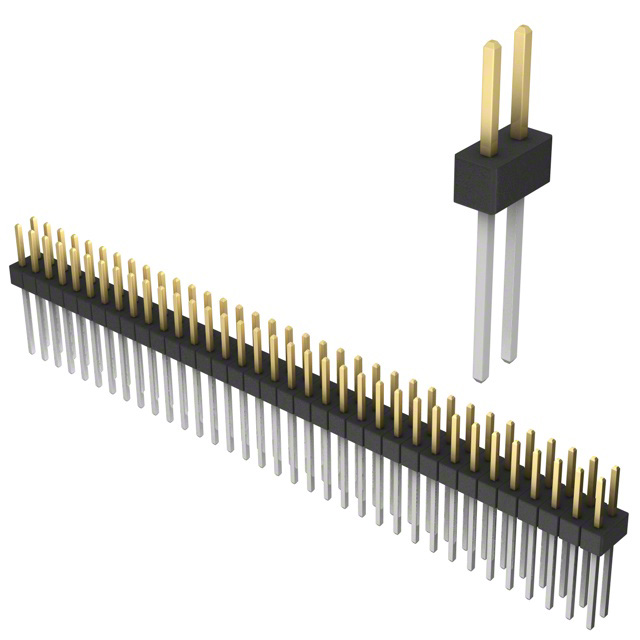

Sullins Connector Solutions PBC35DADN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Through Hole	Solder	Tin	3 A	UL94 V-0	Gold	10.67 mm	0.42 in	Board to Board Cable		Male Pin	70	-65 ░C	125 °C	Square			0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.1 in	2.54 mm	0.25 µm	10 µin	5.84 mm	0.23 in			0.1 in	2.54 mm	2	19.05 mm	0.75 in

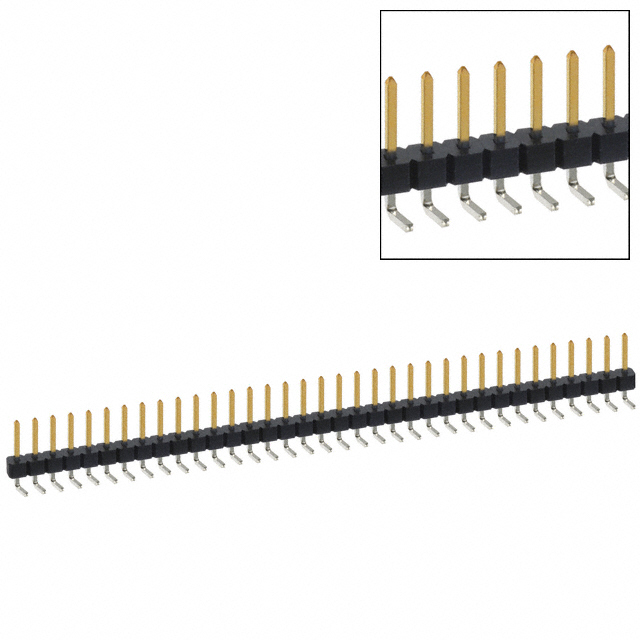

Sullins Connector Solutions PBC35SBAN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Right Angle Through Hole	Solder	Tin	3 A	UL94 V-0	Gold	2.54 mm	0.1 in	Board to Board Cable	1	Male Pin	35	-65 ░C	125 °C	Square			0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.14 in	3.56 mm	0.25 µm	10 µin	5.84 mm	0.23 in

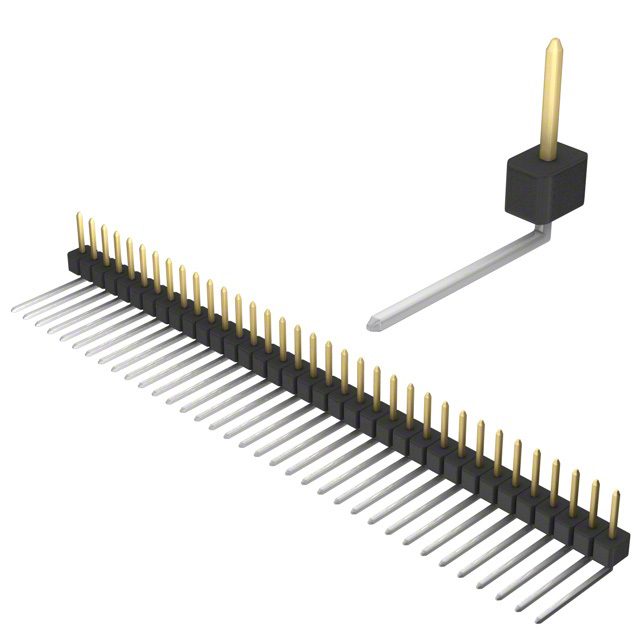

Sullins Connector Solutions PBC35SBDN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Right Angle Through Hole	Solder	Tin	3 A	UL94 V-0	Gold	10.16 mm	0.4 in	Board to Board Cable	1	Male Pin	35	-65 ░C	125 °C	Square			0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.14 in	3.56 mm	0.25 µm	10 µin	5.84 mm	0.23 in

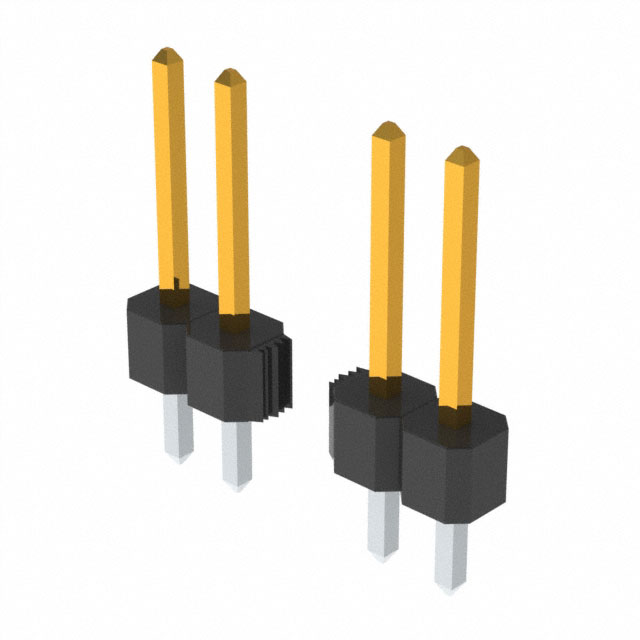

Sullins Connector Solutions PBC35SFAN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Through Hole	Solder	Tin	3 A	UL94 V-0	Gold	3.05 mm	0.12 in	Board to Board Cable	1	Male Pin	35	-65 ░C	125 °C	Square			0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.1 in	2.54 mm	0.25 µm	10 µin	8.08 mm	0.318 in						13.67 mm	0.538 in
Sullins Connector Solutions PBC35DFCN	2.54 µm	100 µin	Black	Phosphor Bronze	Header Breakaway	Through Hole	Solder	Tin	3 A	UL94 V-0	Gold	8.13 mm	0.32 in	Board to Board Cable		Male Pin	70	-65 ░C	125 °C	Square		18.75 mm	0.1 "	2.54 mm	Unshrouded	Push-Pull	Polybutylene Terephthalate (PBT)	All	0.1 in	2.54 mm	0.25 µm	10 µin	8.08 mm	0.318 in			0.1 in	2.54 mm	2			0.738 in
