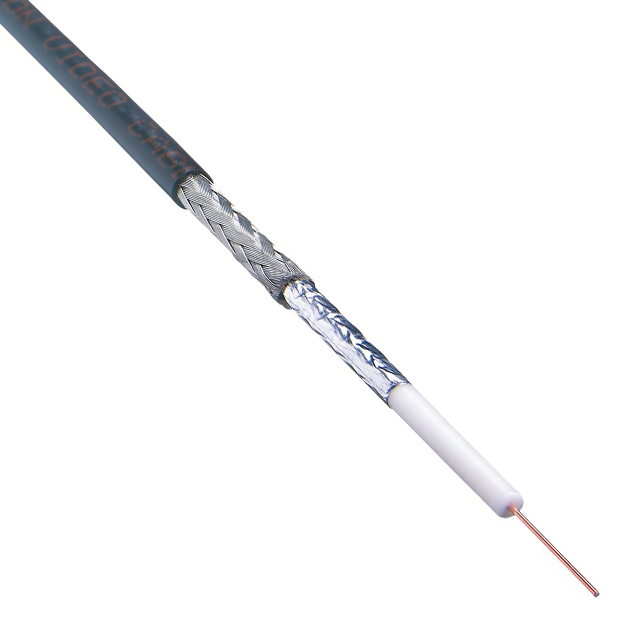

1855A Series
Manufacturer: Belden Inc.
Beta
⌘K
#23 PE/GIFHDPE SH FR PVC
| Part | Shield Coverage | VoP, Velocity of Propagation | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Dielectric Diameter [diameter] | Dielectric Diameter [diameter] | Shield Material | Shield Type | Jacket Color | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Cable Type | Wire Gauge | Features | Length [x] | Length [x] | Cable Group | Conductor Strand | Dielectric Material | Impedance | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Polyester Copper Tinned | Braid Foil | Green | Video | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | UV Resistant | 304.8 m | 1000 ft | RG-59 Mini | Solid | ||||
Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Polyester Copper Tinned | Braid Foil | Violet | Video | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | UV Resistant | 304.8 m | 1000 ft | RG-59 Mini | Solid | ||||
 Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Polyester Copper Tinned | Braid Foil | Yellow | Video | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | UV Resistant | 304.8 m | 1000 ft | RG-59 Mini | Solid | ||||
 Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Polyester Copper Tinned | Braid Foil | Gray | Video | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | UV Resistant | 304.8 m | 1000 ft | RG-59 Mini | Solid | ||||
Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Polyester Copper Tinned | Braid Foil | White | Video | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | UV Resistant | 304.8 m | 1000 ft | RG-59 Mini | Solid | ||||
Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Polyester Copper Tinned | Braid Foil | Red | Video | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | UV Resistant | 304.8 m | 1000 ft | RG-59 Mini | Solid | ||||
 Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Copper Tinned | Braid Foil | Black | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | 304.8 m | 1000 ft | Solid | Foam High Density Polyethylene (FHDPE) | 75 Ohms | |||||
Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Copper Tinned | Braid Foil | Black | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | 15.24 m 152.4 m | 50 ft 500 ft | RG-59 | Solid | Foam High Density Polyethylene (FHDPE) | 75 Ohms | 100 ' | 30.48 m | ||
Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Polyester Copper Tinned | Braid Foil | Orange | Video | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | UV Resistant | 304.8 m | 1000 ft | RG-59 Mini | Solid | ||||
Belden Inc. | 95 % 100 % | 82 | Copper Bare | 75 ░C | -30 ░C | 2.59 mm | 0.102 in | Aluminum Polyester Copper Tinned | Braid Foil | Black | Video | 4.04 mm | 0.159 in | Poly-Vinyl Chloride (PVC) | Coaxial | 23 AWG | UV Resistant | 304.8 m | 1000 ft | RG-59 Mini | Solid |
