WR9QA3200 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 16W

Part	Polarization	Operating Temperature (Max)	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Power (Watts)	Current - Output (Max)	Approval Agency	Standard Number	Applications	Cord Length	Input Connector	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Output Connector I.D.	Output Connector	Output Connector Length	Output Connector O.D.	Form	Efficiency	Region Utilized	Voltage - Output	No Load Power Consumption (Max)	Input Type

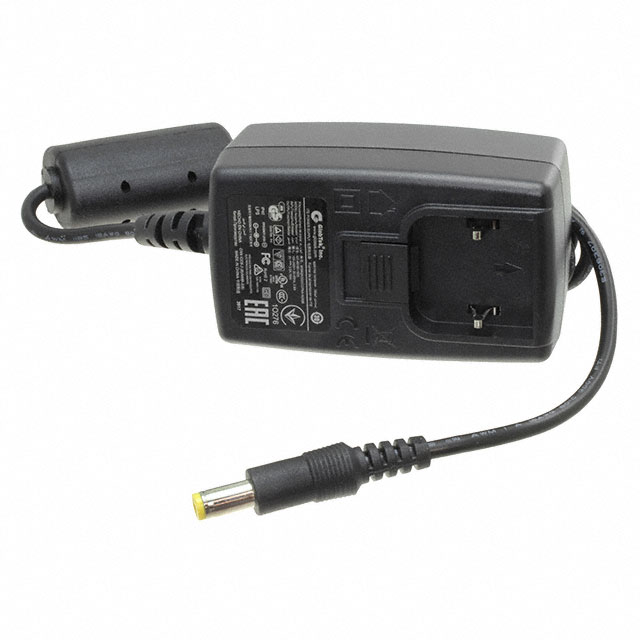

GlobTek, Inc. WR9QA3200CCPNA-N(R6B	Positive Center	40 °C	90 V	264 V	16 W	3.2 A	BSMI CB CCC CE cULus EAC FCC LPS PSE RCM UKRSepro VCCI	60950-1 62368-1	ITE (Commercial)	47.2 in	Multi-Blade (Sold Separately)	1.34 in	1.71 in	2.91 in	2.1 mm	Barrel Plug	11 mm	5.5 mm	Wall Mount (Class II)	Level VI	International	5 VDC	75 mW	Multi-Blade (Sold Separately)

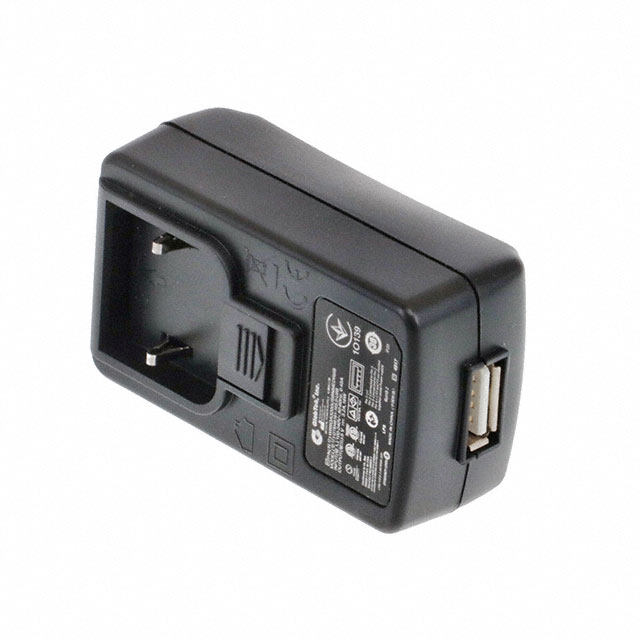

GlobTek, Inc. WR9QA3200USBNMEDR6B		40 °C	90 V	264 V	16 W	3.2 A	CB CCC CE EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL	1310 60601-1-11 60601-1-2 60950-1 62368-1	ITE (Commercial) Medical		Multi-Blade (Sold Separately)	1.24 in	1.61 in	2.8 in		USB A Receptacle			Wall Mount (Class II)	CoC Tier 2 Level VI	International	5 VDC	75 mW	Multi-Blade (Sold Separately)

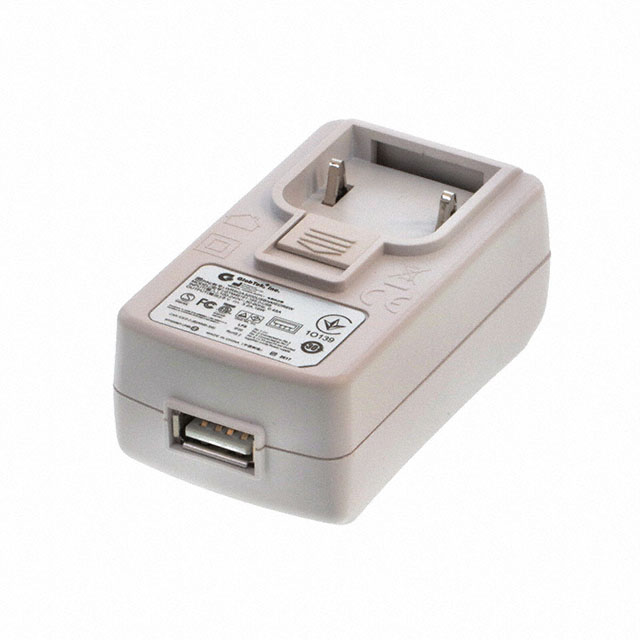

GlobTek, Inc. WR9QA3200USBNMEDR6W		40 °C	90 V	264 V	16 W	3.2 A	CB CCC CE EAC ETL FCC LPS PSE RCM S-Mark UKRSepro UL	1310 60601-1-11 60601-1-2 60950-1 62368-1	ITE (Commercial) Medical		Multi-Blade (Sold Separately)	1.24 in	1.61 in	2.8 in		USB A Receptacle			Wall Mount (Class II)	CoC Tier 2 Level VI	International	5 VDC	75 mW	Multi-Blade (Sold Separately)
