043973 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 40POS 4.2MM

Part	Insulation Color	Number of Positions	Connector Type	Shrouding	Style	Number of Rows	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Contact Type	Material Flammability Rating	Contact Length - Post	Contact Length - Post	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Shape	Number of Positions Loaded	Pitch - Mating	Pitch - Mating	Termination	Mounting Type	Contact Material	Contact Finish - Post	Applications	Contact Length - Post [x]

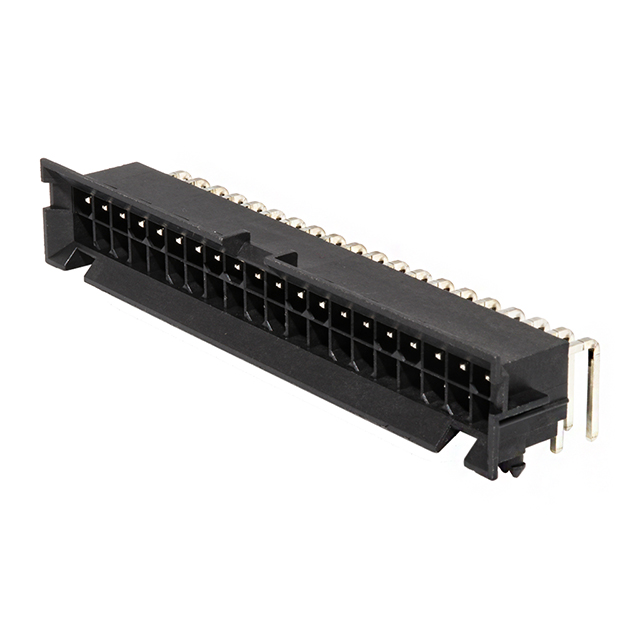

Molex 0439730001	Black	40	Header	Shrouded - 4 Wall	Board to Cable/Wire	2	Latch Holder	2.54 çm	100 çin	4.2 mm	0.165 in	0.591 in	15 mm	Male Pin	UL94 V-0	0.13 in	3.3 mm	Blind Mating Board Lock	2.54 µm	100 µin	Glass Filled Nylon 4/6 Polyamide (PA46)	Square	All	4.2 mm	0.165 in	Solder	Through Hole Right Angle	Brass	Tin	General Purpose Industrial Medical Telecommunications
Molex 0439730003	Black	40	Header	Shrouded - 4 Wall	Board to Cable/Wire	2	Latch Holder	2.54 çm	100 çin	4.2 mm	0.165 in	0.555 in	14.1 mm	Male Pin	UL94 V-0		7.2 mm	Blind Mating Board Lock	2.54 µm	100 µin	Glass Filled Nylon 4/6 Polyamide (PA46)	Square	All	4.2 mm	0.165 in	Solder	Through Hole	Brass	Tin	General Purpose Industrial Medical Telecommunications	0.283 in
