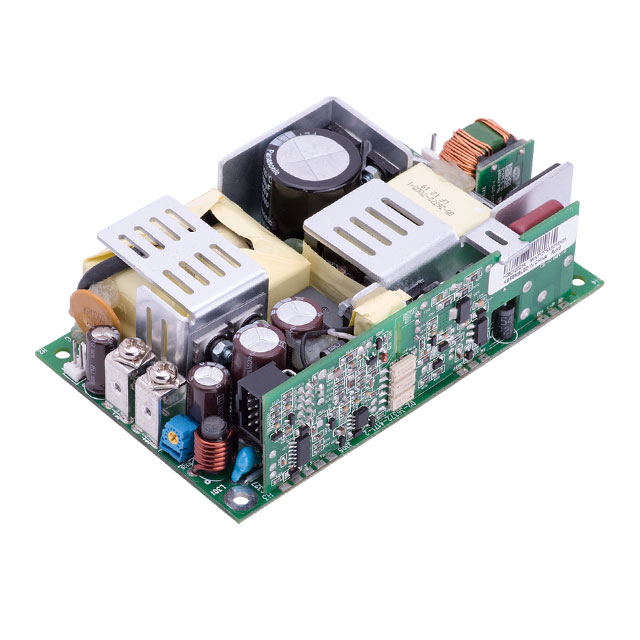

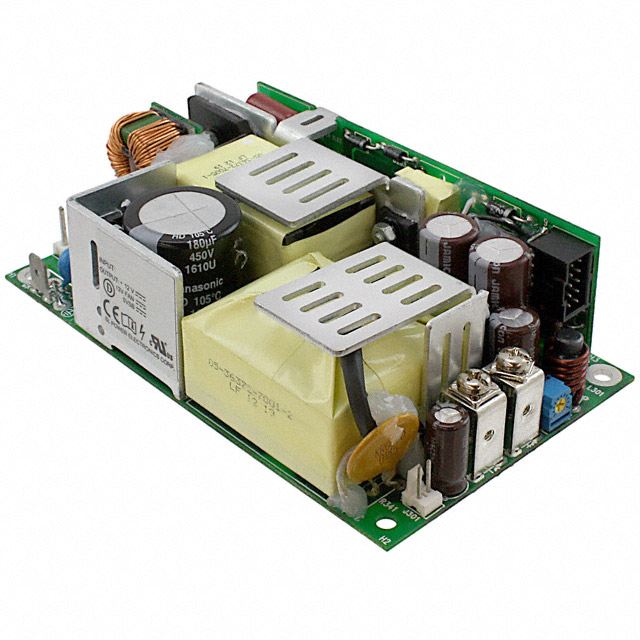

MINT1275 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC CONVERTER 56V 180W

Part	Voltage - Input [Max]	Voltage - Input [Min]	Approval Agency	Efficiency	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Applications	Power (Watts)	Number of Outputs	Features	Voltage - Output 1	Type	Current - Output 1	Operating Temperature [Max]	Operating Temperature [Min]
SL POWER / Advanced Energy MINT1275A5614K01	264 VAC	90 VAC	CE	92 %	4000 V	35.6 mm	5 "	1.4 "	3 "	76.2 mm	127 mm	Chassis Mount	Medical	180 W 275 W	1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	56 V	Open Frame	3.2 A	70 °C	-10 °C
SL POWER / Advanced Energy MINT1275A1214K01	264 VAC	90 VAC	CE	92 %	4000 V	35.6 mm	5 "	1.4 "	3 "	76.2 mm	127 mm	Chassis Mount	Medical	180 W 275 W	1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	12 V	Open Frame	15 A	70 °C	-10 °C
SL POWER / Advanced Energy MINT1275A4814K01	264 VAC	90 VAC	CE	92 %	4000 V	35.6 mm	5 "	1.4 "	3 "	76.2 mm	127 mm	Chassis Mount	Medical	180 W 275 W	1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	48 V	Open Frame	3.75 A	70 °C	-10 °C
SL POWER / Advanced Energy MINT1275A1514K01	264 VAC	90 VAC	CE	92 %	4000 V	35.6 mm	5 "	1.4 "	3 "	76.2 mm	127 mm	Chassis Mount	Medical	180 W 275 W	1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	15 V	Open Frame	12 A	70 °C	-10 °C
SL POWER / Advanced Energy MINT1275A2414K01	264 VAC	90 VAC	CE	92 %	4000 V	35.6 mm	5 "	1.4 "	3 "	76.2 mm	127 mm	Chassis Mount	Medical	180 W 275 W	1	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Standby Output Universal Input	24 V	Open Frame		70 °C	-10 °C
