2102772 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

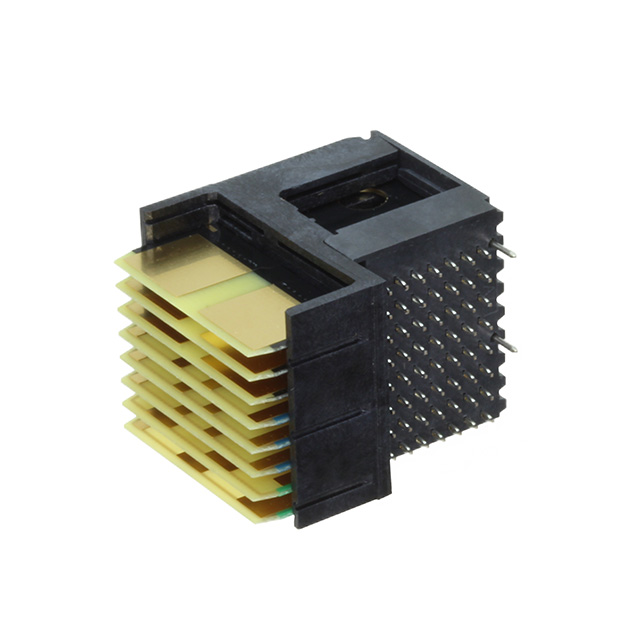

DC, 7ROW, HALF LEFT END, MULTIGI
| Part | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Mounting Type | Number of Columns | Connector Usage | Number of Positions | Operating Temperature [Max] | Operating Temperature [Min] | Pitch [x] | Pitch [x] | Contact Finish | Termination | Contact Layout, Typical | Features | Connector Style | Number of Rows | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 50 µin | 1.27 µm | Plug Male Blades | Board Edge Right Angle Through Hole | 8 | Daughtercard | 56 | 105 ░C | -55 °C | 0.071 in | 1.8 mm | Gold | Press-Fit | 3 4 6 11 16 | Board Guide | Half Left End VITA 46 | 7 | Black |
