SRD2-1F Series
Manufacturer: Switch Components
Beta
⌘K
SWITCH ROCKER SPDT 21A 125V
| Part | Electrical Life (Cycles) | Mechanical Life (Cycles) | Operating Temperature (Max) | Operating Temperature (Min) | Ingress Protection IP Rating | Ingress Protection Description | Actuator Type | Current Rating | Panel Cutout Width | Panel Cutout Shape | Panel Cutout Length | Color - Actuator/Cap | Mounting Type | Voltage Rating - DC | Switch Function | Quick Connect Size (0.250") | Termination Style | Voltage Rating - AC | Circuit | Actuator Marking | Illumination Voltage (Nominal) | Color | Illumination Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switch Components | 6000 Cycles | 10000 Cycles | 85 °C | -25 °C | IP56 | Dust Protected Water Resistant | Convex (Reverse V) | 20 A 21 A | 21.2 mm | Rectangular | 36.8 mm | Black | Panel Mount Snap-In | 14 V | On-Off-On | 0.25 in | Quick Connect | 125 V | SPDT | No Marking | |||

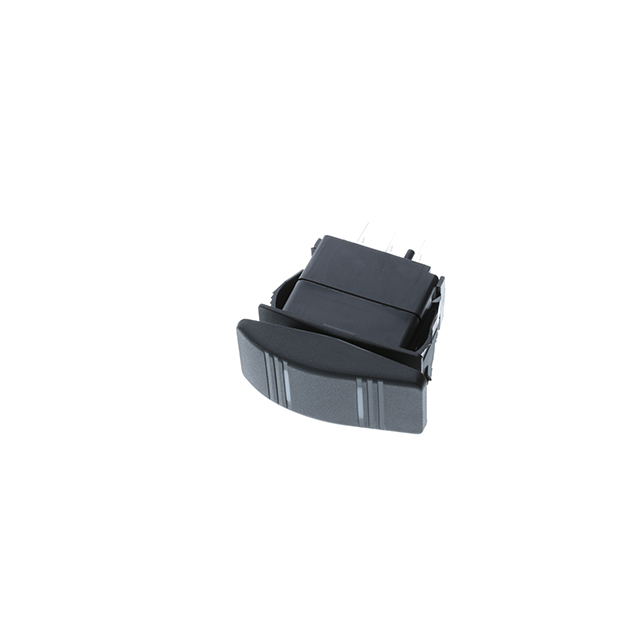

 Switch Components | 6000 Cycles | 10000 Cycles | 85 °C | -25 °C | IP56 | Dust Protected Water Resistant | Convex (Reverse V) Illuminated | 21 A | 21.2 mm | Rectangular | 36.8 mm | Black | Panel Mount Snap-In | 14 V | On-Off-On | 0.25 in | Quick Connect | SPDT | No Marking | 14 VAC/DC | Red | LED | |

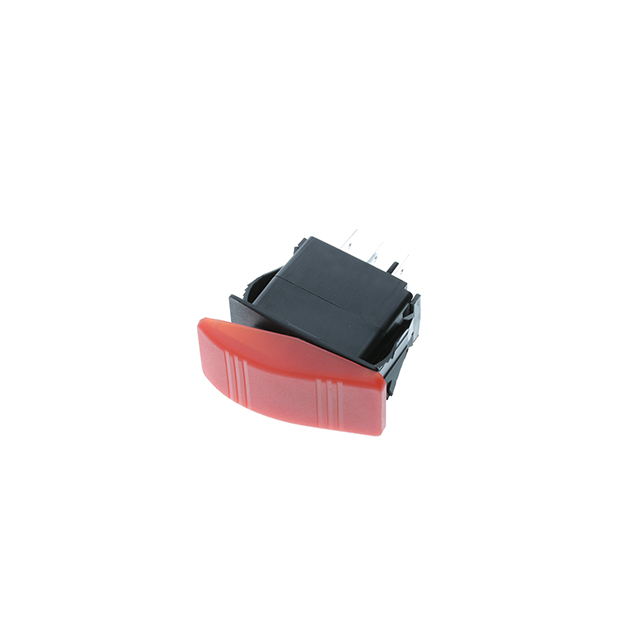

 Switch Components | 6000 Cycles | 10000 Cycles | 85 °C | -25 °C | IP56 | Dust Protected Water Resistant | Convex (Reverse V) | 20 A 21 A | 21.2 mm | Rectangular | 36.8 mm | Red | Panel Mount Snap-In | 14 V | On-Off-On | 0.25 in | Quick Connect | 125 V | SPDT | No Marking |
