83265 Series

Catalog

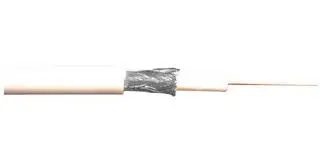

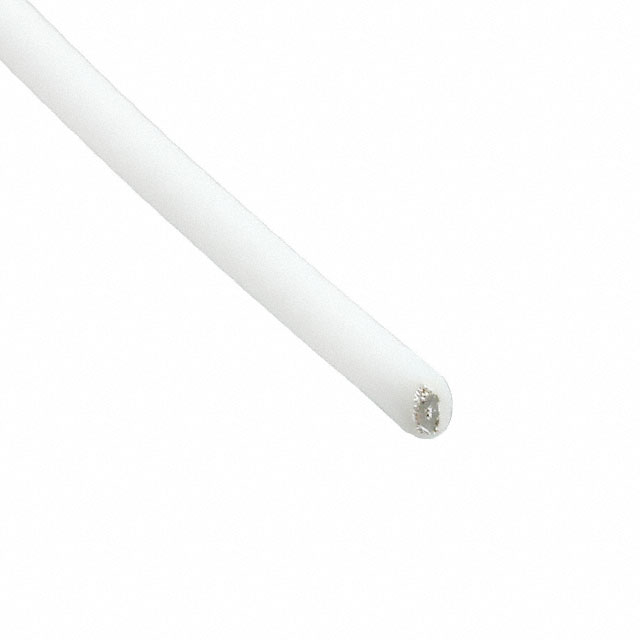

COAXIAL CABLE, HI TEMP MIL-C-27, RG178B, 30 AWG, 50 OHM, 500 FT, 152.4 M

Part	VoP, Velocity of Propagation	Shield Material	Shield Coverage	Dielectric Diameter [diameter]	Dielectric Diameter [diameter]	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Material	Length [x]	Length [x]	Shield Type	Wire Gauge	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Jacket Color	Impedance	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Material	Length	Length
Belden Inc. 83265 009500	69.5	Copper Silver Coated	95 %	0.033 in	0.84 mm	Tetrafluoroethylene (TFE)	-70 °C	200 °C	Copper Covered Silver Coated Steel	152.4 m	500 ft	Braid	30 AWG	Coaxial	38 AWG	7 Strands	White	50 Ohms	1.8 mm	0.071 in	Fluorinated Ethylene-Propylene (FEP)
Belden Inc. 83265 009100	69.5	Copper Silver Coated	95 %	0.033 in	0.84 mm	Tetrafluoroethylene (TFE)	-70 °C	200 °C	Copper Covered Silver Coated Steel			Braid	30 AWG	Coaxial	38 AWG	7 Strands	White	50 Ohms	1.8 mm	0.071 in	Fluorinated Ethylene-Propylene (FEP)	100 '	30.48 m
Belden Inc. 83265 0091000	69.5	Copper Silver Coated	95 %	0.033 in	0.84 mm	Tetrafluoroethylene (TFE)	-70 °C	200 °C	Copper Covered Silver Coated Steel	304.8 m	1000 ft	Braid	30 AWG	Coaxial	38 AWG	7 Strands	White	50 Ohms	1.8 mm	0.071 in	Fluorinated Ethylene-Propylene (FEP)
