2N2221 Series

Catalog

TRANS NPN 50V 0.8A UB

Part	Grade	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Qualification	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Vce Saturation (Max) @ Ib, Ic	Current - Collector Cutoff (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Transistor Type	Mounting Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]

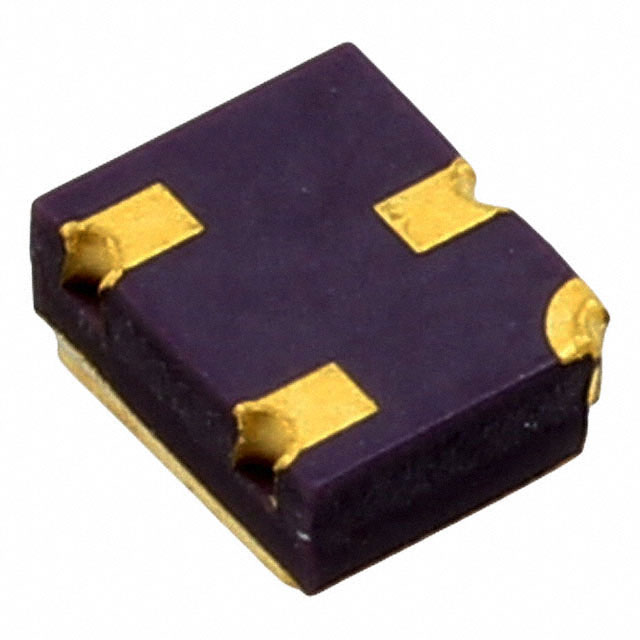

Microsemi Corporation JANSF2N2221AUB	Military	200 °C	-65 °C	3-SMD No Lead	MIL-PRF-19500/255	50 V	UB	1 V	50 nA	800 mA	500 mW	NPN	Surface Mount	40

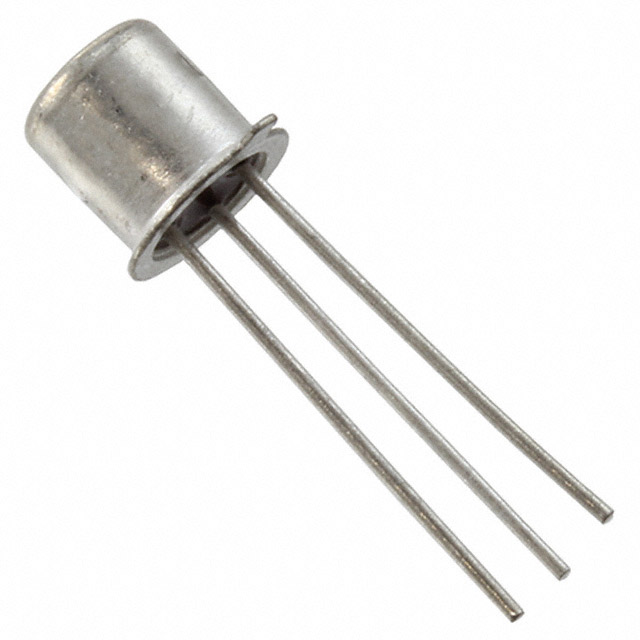

Microsemi Corporation JANTX2N2221AL	Military	200 °C	-65 °C	TO-18-3 Metal Can TO-206AA	MIL-PRF-19500/255	50 V	TO-18 (TO-206AA)	1 V	50 nA	800 mA	500 mW	NPN	Through Hole	40
Microsemi Corporation JANTXV2N2221AUA	Military	200 °C	-65 °C	4-SMD No Lead	MIL-PRF-19500/255	50 V	UA	1 V	50 nA	800 mA	650 mW	NPN	Surface Mount	40
Microsemi Corporation JAN2N2221AUB	Military	200 °C	-65 °C	3-SMD No Lead	MIL-PRF-19500/255	50 V	UB	1 V	50 nA	800 mA	500 mW	NPN	Surface Mount	40
Microsemi Corporation JANS2N2221AUBC	Military	200 °C	-65 °C	3-SMD No Lead	MIL-PRF-19500/255	50 V	UBC	1 V	50 nA	800 mA	500 mW	NPN	Surface Mount	40
Microsemi Corporation 2N2221AL		200 °C	-65 °C	TO-18-3 Metal Can TO-206AA		50 V	TO-18 (TO-206AA)	1 V	50 nA	800 mA	500 mW	NPN	Through Hole	40
Microsemi Corporation JAN2N2221A	Military	200 °C	-65 °C	TO-18-3 Metal Can TO-206AA	MIL-PRF-19500/255	50 V	TO-18 (TO-206AA)	1 V	50 nA	800 mA	500 mW	NPN	Through Hole	40
Microsemi Corporation JANSR2N2221AUB	Military	200 °C	-65 °C	3-SMD No Lead	MIL-PRF-19500/255	50 V	UB	1 V	50 nA	800 mA	500 mW	NPN	Surface Mount	40
Microsemi Corporation JAN2N2221AL	Military	200 °C	-65 °C	TO-18-3 Metal Can TO-206AA	MIL-PRF-19500/255	50 V	TO-18 (TO-206AA)	1 V	50 nA	800 mA	500 mW	NPN	Through Hole	40
